SELECT A DIAGRAM

01 - Body


02 - Internal Controls


03 - Oven


04 - Wiring Information (jew9530acb/w)

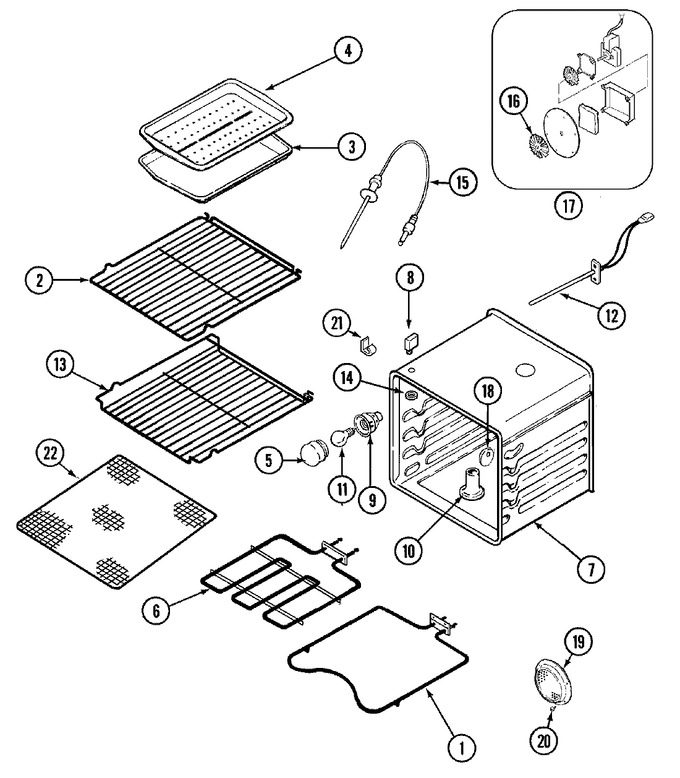

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10310258		Element, Bake   (Replaces: 71001638)	10		Immediately	$ 136.74
2	WPW10282527		Rack, Oven   (Replaces: 71001862)	10			$ 149.26
3	4396923		Pan, Broil   (Replaces: 703164)	10		Immediately	$ 52.04
4	4396923		Insert, Broil Pan   (Replaces: 703165)	10		Immediately	$ 52.04
5	WP9781049		Lens, Bulb   (Replaces: 71001867)	10		Immediately	$ 71.93
6	71001637		Element, Broil	10	Appelez-nous	-
7	WP7101P434-60		Screw   (Replaces: 71001394)	10			$ 6.26
7	71001403		Washer, Alum	10	Appelez-nous	-
7	71003005		Oven Weld Assy.	10	Appelez-nous	-
8	71001863		Receptacle, Probe	10	Appelez-nous	-
9	71001866		Receptacle, Bulb	10	Appelez-nous	-
10	71002419		Tube, Vent	10	Appelez-nous	-
11	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	10		Immediately	$ 16.80
12	12001656		Probe, Oven Sensor   (Replaces: 71003083)	10		Immediately	$ 39.55
13	WPW10282527		Rack, Oven (offset)   (Replaces: 71001865)	10			$ 149.26
14	Y703356		Nut, Hex 3/8``	10	Appelez-nous	-
15	WP71001870		Probe, Temp   (Replaces: 71001870)	10			$ 201.71
16	71001855		Wheel, Convect Assy.	10	Appelez-nous	-
17	71001858		Convection Mtr Assy	10			$ 148.33
18	702929		Button, Plug	10	Appelez-nous	-
19	71001854		Plate, Convection (frt)	10	Appelez-nous	-
20	WP74003976		Washer   (Replaces: 702592)	10			$ 6.47
20	WP7101P434-60		Screw   (Replaces: 71001394)	10			$ 6.26
21	71001170		Clip, Oven	10	Appelez-nous	-
22	74003595		Rack, Dehydration	10	Appelez-nous	-
22	74007237		Spacer, Dehydration Door   (Replaces: 74004226)	10			$ 50.54
24	71001869		Wire, Ground	10	Appelez-nous	-
