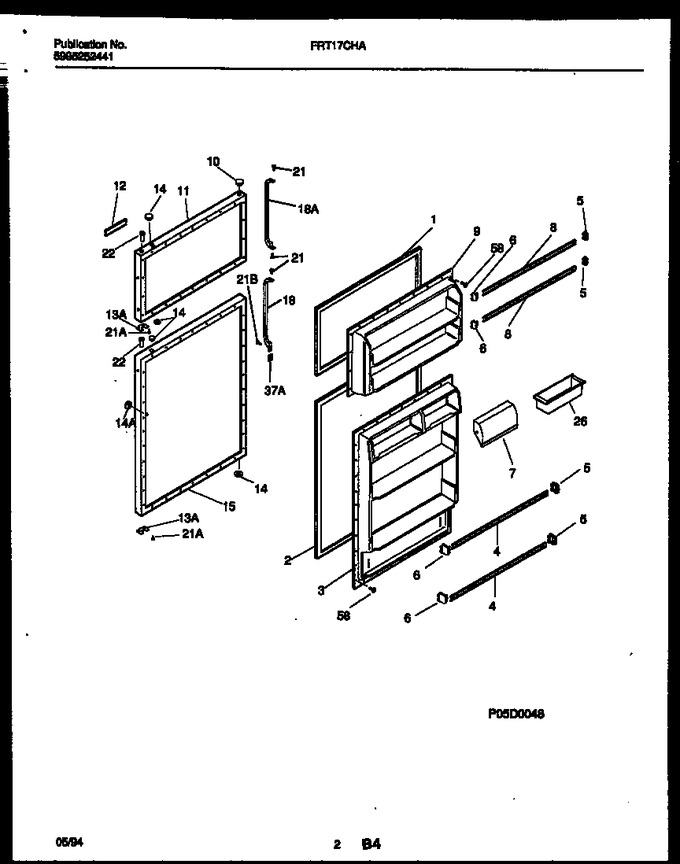

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608911		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	218730603		Gasket-refr Door, White, Magnetic   (Replaces: 215732412)				$ 62.07
3	5303207227		Panel-inner Door, Refr				$ 329.75
4	215516220		Rack-door   (Replaces: 215516207)				$ 54.58
5	5303325990		Support-door Rack, Rh   (Replaces: 5303206644)			Immediately	$ 17.01
6	5303325991		Support-door Rack, Lh   (Replaces: 5303206645)				$ 17.01
7	5303299996		Door-dairy				$ 80.38
8	215516220		Rack-door   (Replaces: 215516208)				$ 54.58
9	5303207236		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917305		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215008601		Nameplate Assy, White		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917377		Panel-refr Door, White, W/insulation		Appelez-nous	-
18	215482115		Handle-door, 17.37``, White		Appelez-nous	-
21	5303272566		Screw-handle Mtg, Cr Oval Head, 10-24(d) X 5/8, White,		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
58	5308002748		Screw		Appelez-nous	-
*10116	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	5308000255		Door Stop				$ 42.20
14A	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
18A	215482113		Handle-door, 17.02``, White		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
37A	215480205		Trim-handle, End Cap, White, Bottom		Appelez-nous	-
