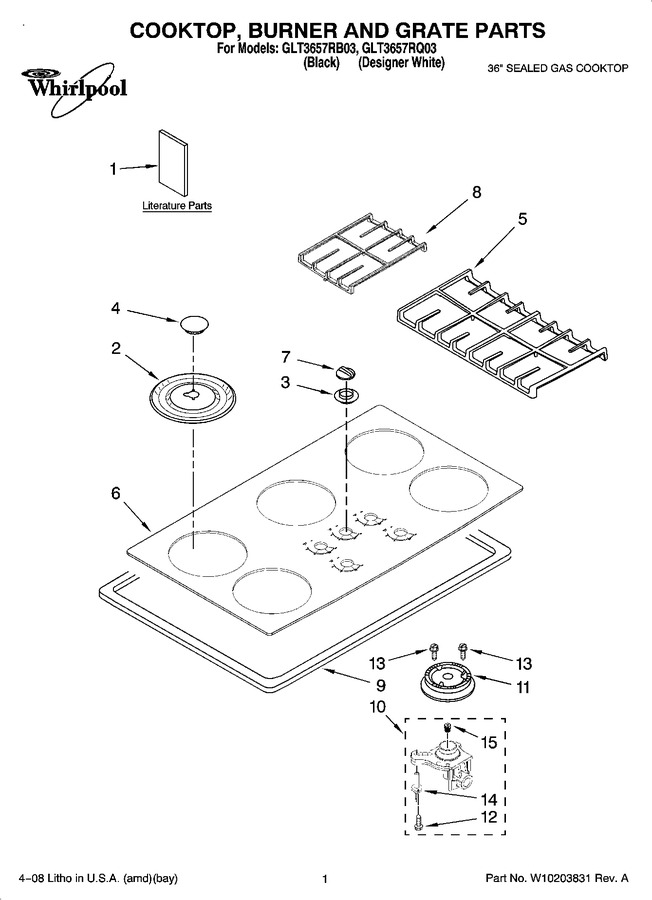

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | 8286620 | L.p. Conversion Instructions |
|
- | |||||
| 1 | 8286304 | Installation Instructions |
|
- | |||||
| 1 | 8304571 | Undercounter, Installation Instruction |
|
- | |||||
| 1 | W10162190 | Use & Care Guide |
|
- | |||||
| 2 | 3191302 | Bowl, Burner 9k,12k (ctr, Rf, Lf) (black) |
|
- | |||||
| 2 | 3191303 | Bowl, Burner 9k,12k (ctr, Rf, Lf) (white) |
|
- | |||||
| 2 | 3191307 | Bowl, Burner 6k (rr, Lr) (black) |
|
- | |||||
| 2 | 3191308 | Bowl, Burner 6k (rr, Lr) (white) |
|
- | |||||
| 3 | WP3180081 | Grommet, Glass (white) (Replaces: 3180081) |
|
$ 7.40 | |||||
| 3 | W10854242 | Grommet, Glass (black) (Replaces: 3180079) |
|
Immediately | $ 7.58 | ||||
| 4 | WP8286154CG | Cap, Burner 9.5k (ctr) (cumberland Gray) (Replaces: 8286154CG) |
|
$ 86.04 | |||||
| 4 | WP8286153CG | Cap, Burner 6k (rr, Lr) (cumberland Gray) (Replaces: 8286153CG) |
|
$ 72.00 | |||||
| 4 | WP8286153CB | Cap, Burner 6k (rr, Lr) (coal Matte Black) (Replaces: 8286153CB) |
|
$ 61.97 | |||||
| 4 | WP8286155CG | Cap, Burner 12.5k (lf, Rf) (cumberland Gray) (Replaces: 8286155CG) |
|
$ 89.27 | |||||
| 4 | WP8286155CB | Cap, Burner 12.5k (lf, Rf) (coal Matte Black) (Replaces: 8286155CB) |
|
$ 104.70 | |||||
| 4 | WP8286154CB | Cap, Burner 9.5k (ctr) (coal Matte Black) (Replaces: 8286154CB) |
|
$ 77.94 | |||||
| 5 | 8285894CG | Grate Right (cumberland Gray) |
|
- | |||||
| 5 | 8285892CG | Grate Left (cumberland Gray) |
|
- | |||||
| 5 | 8285892CB | Grate Left (coal Matte Black) |
|
$ 89.02 | |||||
| 5 | 8285894CB | Grate Right (coal Matte Black) |
|
$ 88.74 | |||||
| 6 | 8286249 | Cooktop (black) |
|
- | |||||
| 6 | 8286264 | Cooktop (white) |
|
- | |||||
| 7 | WP8286058BL | Knob, Control (4) (black) (Replaces: 8286058BL) |
|
Immediately | $ 22.04 | ||||
| 7 | 8286058WH | Knob, Control (4) (white) |
|
$ 21.10 | |||||
| 8 | 8285891CG | Grate, Center (cumberland Gray) |
|
- | |||||
| 8 | 8285891CB | Grate, Center (coal Matte Black) |
|
- | |||||
| 9 | 3191933 | Seal, Foam |
|
$ 29.81 | |||||
| 10 | WPW10128451 | Holder, Orifice (12k (lf, Rf)) (Replaces: W10128451) |
|
$ 99.80 | |||||
| 10 | WPW10128450 | Holder, Orifice (9k (ctr)) (Replaces: W10128450) |
|
$ 106.59 | |||||
| 10 | WPW10128448 | Holder, Orifice (6k (rr, Lr)) (Replaces: W10128448) |
|
Immediately | $ 100.54 | ||||
| 11 | WPW10406283 | Head, Burner (ctr) (Replaces: 8286184) |
|
$ 66.87 | |||||
| 11 | WPW10406797 | Head, Burner (lf) (rf) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 11 | WPW10406243 | Head, Burner (rr) (lr) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 12 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 13 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 14 | WP9782116 | Electrode (Replaces: 9782116) |
|
Immediately | $ 49.45 | ||||
| 15 | 8286551 | Orifice (lf, Rf) |
|
$ 89.96 | |||||
| 15 | WP3192529 | Orifice (rr, Lr) (Replaces: 3192529) |
|
$ 86.35 | |||||
| 15 | WP3192523 | Orifice (ctr) (Replaces: 3192523) |
|
$ 80.19 | |||||
| WP3400806 | Harness, Wire Ignitor (screw (2)) (Replaces: 3400806) |
|
$ 6.94 | ||||||
| WP4449809 | Harness, Wire Ignitor (screw (4)) (Replaces: 4449809) |
|
Immediately | $ 6.47 | |||||
| 4456627 | Harness, Wire (ignitor 28``) |
|
$ 189.13 | ||||||
| 4456626 | Harness, Wire Ignitor 15`` |
|
$ 66.34 |
