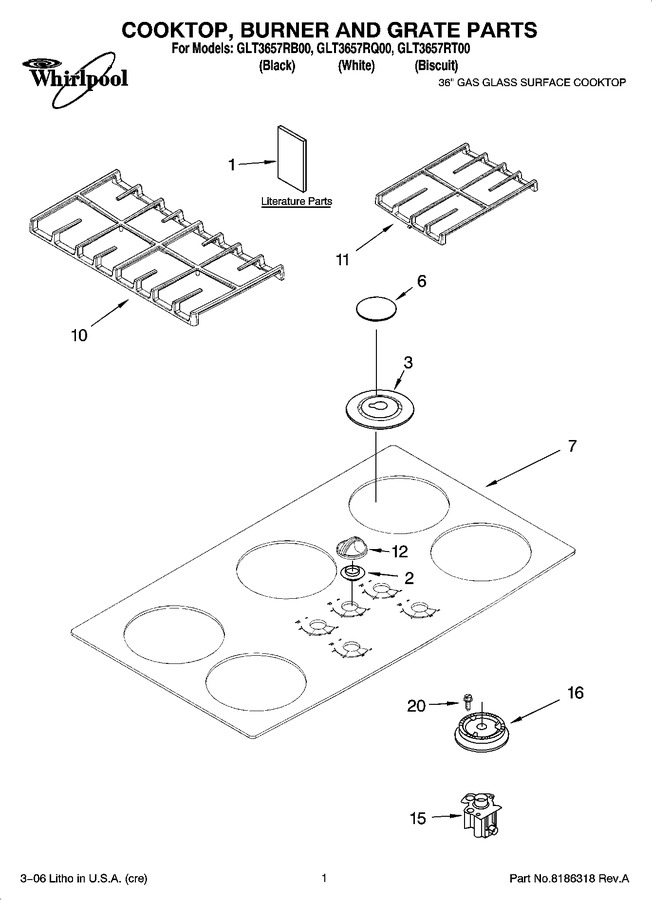

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286304		Installation Instructions		Appelez-nous	-
1	8286313		Use & Care Guide		Appelez-nous	-
1	3192099		Wiring Diagram		Appelez-nous	-
1	3191638		Safe Cooking Tips		Appelez-nous	-
1	8286314		Lp Conversion Instructions		Appelez-nous	-
2	WP3180081		Grommet, Glass (white)   (Replaces: 3180081)				$ 7.40
2	W10854242		Grommet, Glass (black)   (Replaces: 3180079)			Immediately	$ 7.58
2	3191817		Grommet, Glass (biscuit)		Appelez-nous	-
3	3191303		Bowl, Burner (lf) (rf) (center) (white)		Appelez-nous	-
3	3191302		Bowl, Burner (lf) (rf) (center) (black)		Appelez-nous	-
3	3191308		Bowl, Burner (rr) (lr) (white)		Appelez-nous	-
3	3191307		Bowl, Burner (rr) (lr) (black)		Appelez-nous	-
3	3191818		Bowl, Burner (lf) (rf) (center) (biscuit)		Appelez-nous	-
3	3191819		Bowl, Burner (rr) (lr) (biscuit)		Appelez-nous	-
6	WP8286153CG		Cap, Burner (rr) (lr) (cumberland Gray)   (Replaces: 8286153CG)				$ 72.00
6	WP8286153CB		Cap, Burner (rr) (lr) (black)   (Replaces: 8286153BL)				$ 61.97
6	8286153EP		Cap, Burner (rr) (lr) (espresso)		Appelez-nous	-
6	8286155EP		Cap, Burner (rf) (lf) (espresso)		Appelez-nous	-
6	WP8286155CG		Cap, Burner (rf) (lf) (cumberland Gray)   (Replaces: 8286155CG)				$ 89.27
6	WP8286155CB		Cap, Burner (rf) (lf) (black)   (Replaces: 8286155BL)				$ 104.70
6	8286154EP		Cap, Burner (center) (espresso)		Appelez-nous	-
6	WP8286154CG		Cap, Burner (center) (cumberland Gray)   (Replaces: 8286154CG)				$ 86.04
6	WP8286154CB		Cap, Burner (center) (black)   (Replaces: 8286154BL)				$ 77.94
7	8286267		Cooktop, Glass (biscuit)		Appelez-nous	-
7	8286264		Cooktop, Glass (white)		Appelez-nous	-
7	8286249		Cooktop, Glass (black)		Appelez-nous	-
10	8285892EP		Grate, Burner L.hand (espresso)		Appelez-nous	-
10	8285894BL		Grate, Burner R.hand (black)		Appelez-nous	-
10	8285892CG		Grate, Burner L.hand (cumberland Gray)		Appelez-nous	-
10	8285892BL		Grate, Burner L.hand (black)		Appelez-nous	-
10	8285894EP		Grate, Burner R.hand (espresso)		Appelez-nous	-
10	8285894CG		Grate, Burner R.hand (cumberland Gray)		Appelez-nous	-
11	8285891EP		Grate, Center (espresso)		Appelez-nous	-
11	8285891CG		Grate, Center (cumberland Gray)		Appelez-nous	-
11	8285891BL		Grate, Center (black)		Appelez-nous	-
12	8286058BT		Knob, Control (5) (biscuit)		Appelez-nous	-
12	WP8286058BL		Knob, Control (5) (black)   (Replaces: 8286058BL)			Immediately	$ 22.04
12	8286058WH		Knob, Control (5) (white)				$ 21.10
15	WPW10128448		Holder, Orifice (auxi)   (Replaces: 8286179)			Immediately	$ 100.54
15	WPW10128450		Holder, Orifice (semi Rapid)   (Replaces: 8286178)				$ 106.59
15	WPW10128451		Holder, Orifice (rapide)   (Replaces: 8286180)				$ 99.80
16	WPW10406797		Head, Burner (lf) (rf)   (Replaces: 8286182)				$ 79.64
16	WPW10406283		Head, Burner (center)   (Replaces: 8286184)				$ 66.87
16	WPW10406243		Head, Burner (rr) (lr)   (Replaces: 8286181)			Immediately	$ 33.50
20	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42
