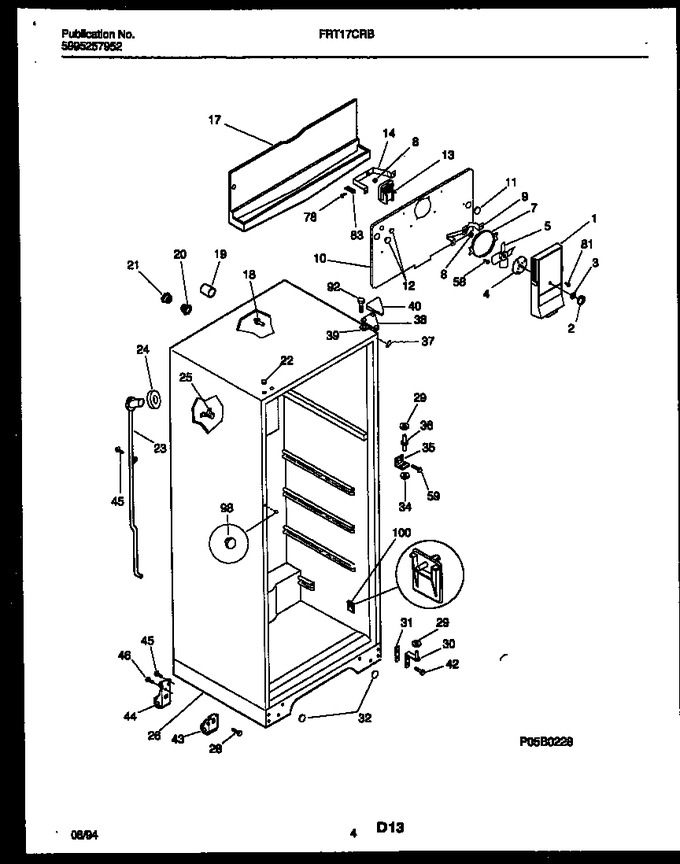

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303299977 | Cover Fan |
|
- | |||||
| 2 | 5303299978 | Knob-damper Control |
|
- | |||||
| 3 | 5303001028 | Nut,push-on |
|
- | |||||
| 4 | 5303001331 | Damper-fan Cover |
|
$ 31.71 | |||||
| 5 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 7 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303205118 | Bracket-motor Mtg, Front |
|
- | |||||
| 10 | 3001527 | Cover-evap Coil |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 12 | 215079000 | Plug-harness Hole, Round |
|
$ 8.61 | |||||
| 12 | 215079100 | Plug-wtr Inlet Tube, Round |
|
$ 6.25 | |||||
| 13 | 5300158289 | Motor-evap Fan (Replaces: 218322200) |
|
Immediately | $ 149.94 | ||||
| 14 | 5303205119 | Bracket-motor Mtg, Rear |
|
- | |||||
| 17 | 08010005 | Trough-drain |
|
- | |||||
| 18 | 215245000 | Support-evap Cover |
|
$ 25.20 | |||||
| 19 | 5303001198 | Tube-rubber |
|
- | |||||
| 20 | 5303001286 | Ferrule-inner |
|
- | |||||
| 21 | 5303001287 | Ferrule-outer |
|
- | |||||
| 22 | 5303001388 | Plug-button, White, Upr Hinge Holes |
|
$ 2.60 | |||||
| 23 | 5303210377 | Tube-drain, W/seal Ring |
|
$ 109.31 | |||||
| 24 | 5303207353 | Seal Ring, Drain Tube |
|
$ 6.81 | |||||
| 25 | 5308000056 | Spout-drain Tube |
|
$ 11.66 | |||||
| 26 | 5303269889 | Base-cabinet |
|
- | |||||
| 28 | 5303271412 | Bolt-roller Adj, Hex Hd, 1/4-28 X 2.750 |
|
$ 37.64 | |||||
| 29 | 5308000007 | Washer, .34 X .62 X .05, Nylon |
|
- | |||||
| 30 | 5303212489 | Bracket-lower Hinge, W/ Pin |
|
- | |||||
| 31 | 5303212488 | Shim-lower Hinge |
|
$ 5.25 | |||||
| 32 | 5303212923 | Plug-button, Cabinet Base, (2) |
|
- | |||||
| 34 | 5308000186 | Washer, .34 X .62 X .10, Nylon |
|
Immediately | $ 6.02 | ||||
| 35 | 218085400 | Bracket-ctr Hinge |
|
- | |||||
| 36 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 37 | 5303202336 | Trim-cabinet Corner, White |
|
- | |||||
| 38 | 5308012843 | Bracket-upper Hinge |
|
$ 71.47 | |||||
| 39 | 5303001037 | Shim - Upper Hinge |
|
$ 12.39 | |||||
| 40 | 5308012820 | Cover-upper Hinge, White |
|
- | |||||
| 42 | 5303001320 | Screw-hinge/gusset, Hex Washer Head, 1/4-20 X 5/8 |
|
- | |||||
| 43 | 5303212490 | Roller Assy, Front, (2) |
|
- | |||||
| 44 | 5308009773 | Roller Assy, Rear, (2) |
|
- | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 46 | 5308009762 | Bolt-roller Mtg, Hex Washer Head, 1/4-28 X 1/2, (2) |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 59 | 240442708 | Screw-hinge/mullion , 10-32 X 5/8 (Replaces: 218188000) |
|
$ 8.34 | |||||
| 78 | 5303274237 | Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2 |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 83 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 92 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 98 | 215099701 | Plug-button, White, Ctr Hinge Hole |
|
$ 5.99 | |||||
| 100 | 5303288973 | Support-crisper Cvr |
|
$ 24.41 | |||||
| *10979 | 5308016571 | Plug-button, Cabinet Liner |
|
$ 4.79 | |||||
| *10979 | 5303321319 | Touch-up Paint-white (Replaces: 5303305324) |
|
Immediately | $ 13.46 | ||||
| 10A | 5303209636 | Screw-coil Cvr, Cr Pan Hd, 8-15(a) X 5/8 (non-illustrated) |
|
- | |||||
| 25A | 5303001361 | Pin-push, Plastic (non-illustrated) |
|
- | |||||
| 30A | 5303212596 | Tapping Plate/gusset, Lh (non-illustrated) |
|
- | |||||
| 30B | 5303212597 | Tapping Plate/gusset, Rh (non-illustrated) |
|
- | |||||
| 38A | 5308012296 | Tapping Plate, Upper Hinge, (2) (non-illustrated) |
|
$ 47.44 |
