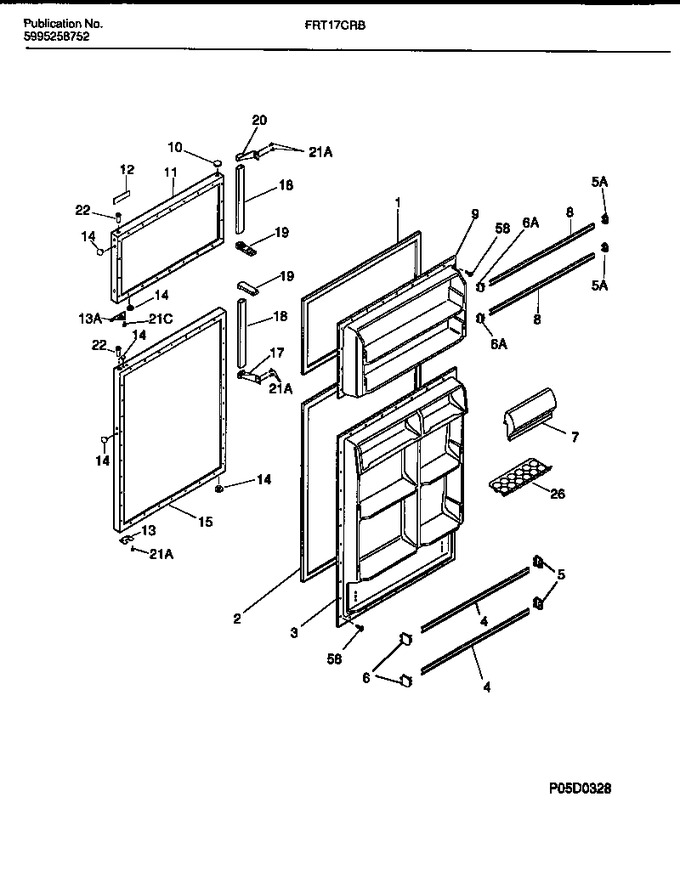

02 - Door Section


03 - Cabinet With Fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608911		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730603		Gasket-refr Door, White, Magnetic   (Replaces: 215732412)				$ 62.07
3	215026201		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door, 22.69`` X 1.62``   (Replaces: 215366034)			Immediately	$ 65.83
5	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
6	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
7	5303304618		Door-dairy				$ 67.78
8	5303300237		Rack-door, 23.97`` X 1.12``				$ 133.93
9	5303290026		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	3916413		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215008601		Nameplate Assy, White		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	3916417		Panel-refr Door, White, W/insulation		Appelez-nous	-
17	5303001015		Handle End				$ 74.29
18	5303302990		Handle-door, White				$ 86.15
19	5303001296		Handle End, (2)				$ 86.36
20	5303001014		Handle End		Appelez-nous	-
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*15560	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	218249001		Door Stop, White, Frzr				$ 82.06
21A	5308011745		Screw				$ 10.38
21C	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
5A	3206156		Support-door Rack, Extends .56``, Rh		Appelez-nous	-
6A	3206157		Support-door Rack, Extends .56``, Lh		Appelez-nous	-
