Diagram for 01 - Convection Oven Parts
01 - Convection Oven Parts

Diagram for 02 - Oven Interior Parts
02 - Oven Interior Parts

Diagram for 03 - Oven Cavity Parts
03 - Oven Cavity Parts

Diagram for 04 - Base Plate Parts
04 - Base Plate Parts

Diagram for 05 - Latch Board Parts
05 - Latch Board Parts

Diagram for 06 - Control Panel Parts
06 - Control Panel Parts

Diagram for 07 - Oven Door Parts
07 - Oven Door Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8172190 U & C Guide Appelez-nous -
1 8205787 Tech Sheet Cooking Guide Appelez-nous -
1 8172205 English Appelez-nous -
1 8172219 Instructions, Installation Appelez-nous -
1 8172220 Template-b/i Kit Appelez-nous -
2 8171878 Sensor Appelez-nous -
3 4358450 Screw Appelez-nous -
5 8183575 Bracket, Center Appelez-nous -
6 8183574 Bracket, Left Appelez-nous -
7 8183576 Bracket, Lower Appelez-nous -
9 8183580 Insulator Appelez-nous -
10 8183593 Thermostat Appelez-nous -
11 8183583 Thermistor Appelez-nous -
12 8183582 Fan Appelez-nous -
13 4358460 Bushing Appelez-nous -
14 8183581 Convection Element Appelez-nous -
15 8183577 Clip, Conv Element Appelez-nous -
16 8183567 Duct, Magnetron Appelez-nous -
17 4358464 Insulation Appelez-nous -
18 8183566 Shield, Back Insul Appelez-nous -
19 4358466 Fan Blade Appelez-nous -
20 4358467 Bracket, Convection Motor Appelez-nous -
21 8183565 Convection Motor Appelez-nous -
22 4358192 Screw Appelez-nous -
23 WP8533914 Washer   (Replaces: 4358477) In-Stock Immediately $ 4.04

24 4358478 Washer Appelez-nous -
25 W11245710 Screw   (Replaces: 4358362) In-Stock Immediately $ 12.65

26 8183572 Screw Appelez-nous -
27 4358380 Screw Special Order $ 11.75

28 4358476 Nut Appelez-nous -
29 8183564 Screw Appelez-nous -
31 N/A Trim Kits Appelez-nous -
31 MK1150XJB 30`` Black Appelez-nous -
31 MK1150XJQ 30`` White Appelez-nous -
31 MK1150XJT 30`` Biscuit Appelez-nous -
31 MK1150XJS 30`` Stainless Appelez-nous -
31 8183591 Harness, Wire Appelez-nous -
31 MK1157XJB 27`` Black Appelez-nous -
31 MK1157XJQ 27`` White Appelez-nous -
31 MK1157XJT 27`` Biscuit Appelez-nous -
31 MK1157XJS 27`` Stainless Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

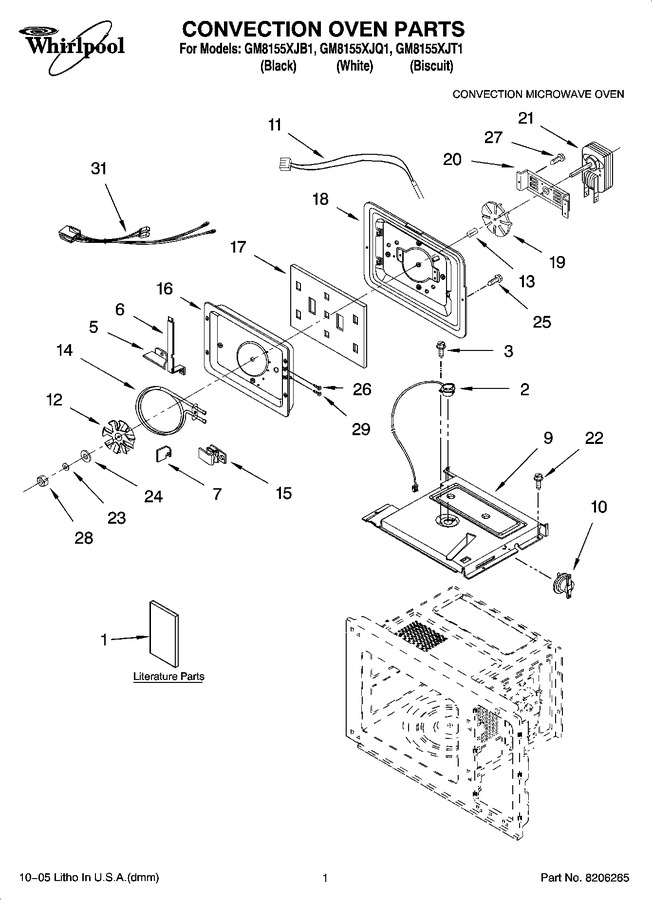

Diagram for GM8155XJB1
