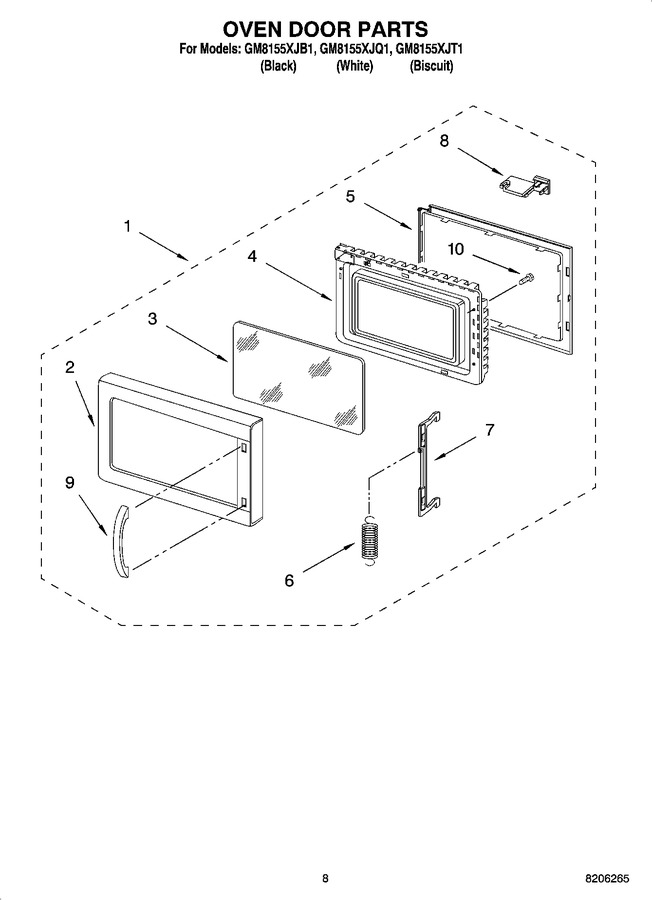

07 - Oven Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8183537 | Door Assembly (black) |
|
- | |||||
| 1 | 8183538 | Door Assembly (white) |
|
- | |||||
| 1 | 8183793 | Door Assembly (biscuit) |
|
- | |||||
| 2 | 8183539 | Panel, Door (black) |
|
- | |||||
| 2 | 8183540 | Panel, Door (white) |
|
- | |||||
| 2 | 8183811 | Panel, Door (biscuit) |
|
- | |||||
| 3 | 8183542 | Glass (white) |
|
- | |||||
| 3 | 8183689 | Glass (biscuit) |
|
- | |||||
| 3 | 8183541 | Glass (black) |
|
- | |||||
| 4 | 8183543 | Frame, Door |
|
- | |||||
| 5 | 8183544 | Choke Cover |
|
- | |||||
| 6 | 8171918 | Spring |
|
$ 51.20 | |||||
| 7 | 8171850 | Latch |
|
- | |||||
| 8 | 8171798 | Cap |
|
- | |||||
| 9 | 8183545 | Handle (black) |
|
- | |||||
| 9 | 8183546 | Handle (white) |
|
- | |||||
| 9 | 8183812 | Handle (biscuit) |
|
- | |||||
| 10 | 4358188 | Screw |
|
- |
