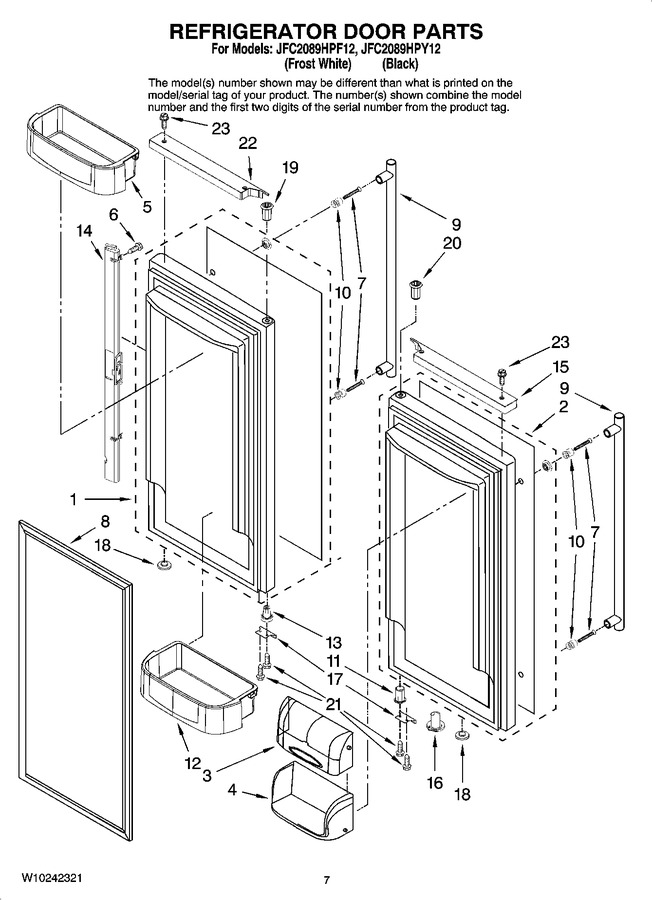

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10133892		Door, Left (black)		Appelez-nous	-
1	W10133891		Door, Left (white)		Appelez-nous	-
2	W10133894		Door, Right (white)		Appelez-nous	-
2	W10133895		Door, Right (black)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 74.40
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 79.21
5	67004748		Bin, Shelf (3) (medium)			Immediately	$ 78.59
6	W11311945		Screw   (Replaces: 67006786)				$ 13.25
7	WPW10133608		Screw   (Replaces: W10133608)				$ 9.25
8	W10830189		Gasket, Door (2) (white)   (Replaces: W10137006)				$ 267.82
8	W11368721		Gasket, Door (2) (black)   (Replaces: 12723206B)			Immediately	$ 194.02
9	WP12850910		Door Handle (stainless)   (Replaces: 12850910)				$ 260.71
10	67006109		Mount, Handle		Appelez-nous	-
11	12028601W		Bushing, Door (bottom-right) (white)   (Replaces: 67002732)				$ 21.63
11	WP67002731		Bushing, Door (bottom-right) (black)   (Replaces: 67002731)			Immediately	$ 7.42
12	67004749		Bin, Shelf (2) (gallon)				$ 81.05
13	WP67002721		Bushing, Door (bottom-left) (black)   (Replaces: 67002721)			Immediately	$ 7.43
13	67002722		Bushing, Door (bottom-left) (white)				$ 19.95
14	WP12722803W		Mullion, Door (white)   (Replaces: 67003263)			Immediately	$ 290.84
14	WP12722803B		Mullion, Door (black)   (Replaces: 67003264)			Immediately	$ 231.87
15	67005570		Extension, Door (right) (white)		Appelez-nous	-
15	67005569		Extension, Door (right-black)		Appelez-nous	-
16	WP67003639		Closure, Door (black)   (Replaces: 67003639)			Immediately	$ 81.29
16	WP67003638		Closure, Door (white)   (Replaces: 67003638)			Immediately	$ 7.34
17	12968202W		Stop, Door (white)   (Replaces: 67003779)				$ 62.36
17	W11708403		Stop, Door (black)   (Replaces: 67003780)				$ 13.28
18	10712401		Plug, Button (white)				$ 7.79
18	67004838		Plug, Button (black)				$ 10.09
19	8208313		Bushing, Door (upper Left) (white)		Appelez-nous	-
19	12395501B		Bushing, Door Upper Left (black)		Appelez-nous	-
20	67004978		Bushing, Door (upper Right) (black)			Immediately	$ 19.89
20	WP67004977		Bushing, Door (upper Right) (white)   (Replaces: 67004977)				$ 7.38
21	WP98165		Screw   (Replaces: 67006287)				$ 7.71
22	67005567		Extension, Door (left-black) (black)		Appelez-nous	-
22	67005568		Extension, Door (left-black) (white)		Appelez-nous	-
23	340184		Screw, Extension   (Replaces: 67006679)				$ 12.70
