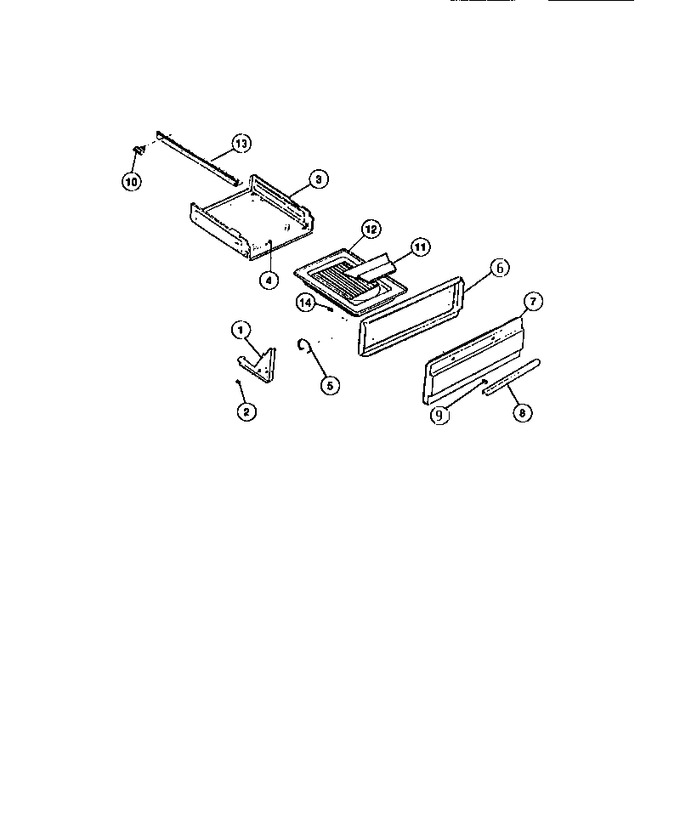

05 - Broiler Incl. Door
06 - Burners, Manifold, Gas Control
07 - Basic Body
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3200673 | Bracket-broiler Hinge (left Hand) |
|
- | |||||
| 2 | 3131386 | Fastener, Push Nut (2) |
|
- | |||||
| 3 | 3018608 | Body, Broiler |
|
- | |||||
| 4 | 3018614 | Pin-hinge |
|
- | |||||
| 5 | 3018618 | Spring-broiler (left Hand C Type) |
|
- | |||||
| 6 | 3018611 | Liner-broiler Drawer |
|
- | |||||
| 7 | 3131117 | Panel-drawer, White |
|
- | |||||
| 8 | 3201268 | Handle |
|
- | |||||
| 9 | 3131387 | Front-spacer (2) |
|
- | |||||
| 10 | 3018610 | Glide-broiler (6) |
|
$ 29.40 | |||||
| 11 | 3131487 | Shield-broiler Swap |
|
- | |||||
| 12 | 3201269 | Pan-broiler |
|
- | |||||
| 13 | 3131153 | Channel, Broiler (4) |
|
- | |||||
| *89723 | 3131258 | Insulation-broiler Drawer |
|
- | |||||
| *89724 | 636T143P01 | Screw |
|
- | |||||
| *89725 | 636T162P01 | Screw (2) |
|
- | |||||
| 1A | 3018860 | Bracket-broiler Hinge (right Hand) |
|
- | |||||
| 5A | 3018619 | Spring-broiler (right Hand C Type) |
|
- |
