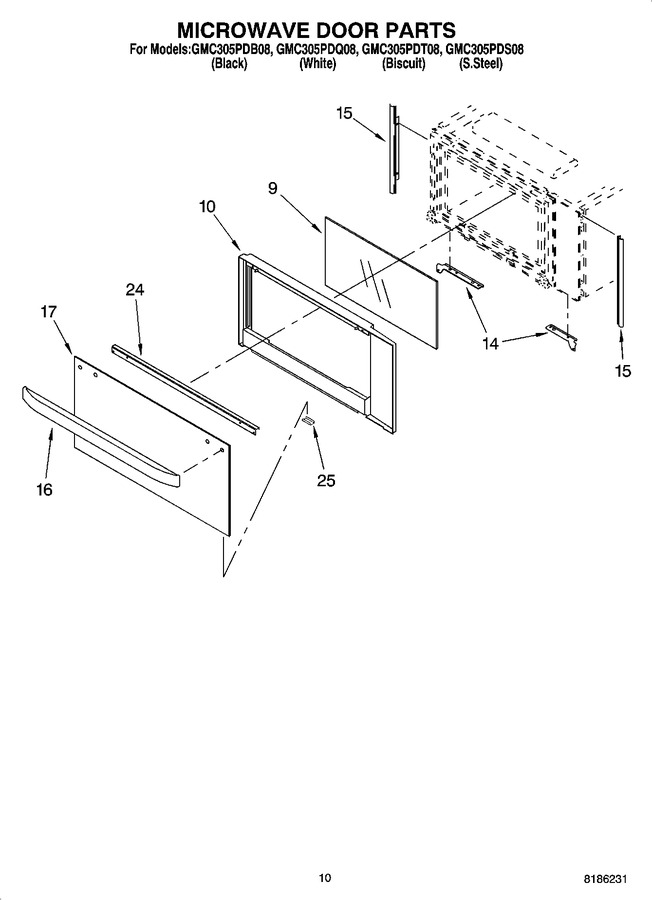

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	4450834		Glass, Middle		Appelez-nous	-
10	WP8303556		Frame, Door   (Replaces: 4450946)				$ 238.92
10	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
14	WP4449809		Bracket, Mounting (screw)   (Replaces: 4449809)			Immediately	$ 6.47
14	4449141		Bracket, Mounting (right Side)				$ 31.33
14	4449142		Bracket, Mounting (left Side)				$ 52.12
15	4449086		Filler, Side (left Side)				$ 36.10
15	4449083		Filler, Side (right Side)				$ 36.44
15	WP4449809		Filler, Side (screw)   (Replaces: 4449809)			Immediately	$ 6.47
16	4448855		Handle, Door (white)		Appelez-nous	-
16	4452860		Handle, Door (biscuit)		Appelez-nous	-
16	4448854		Handle, Door (black)				$ 74.07
17	4452471		Glass, Outer (black Stainless)		Appelez-nous	-
17	4450382		Glass, Outer (black)		Appelez-nous	-
17	4451220		Glass, Outer (white)		Appelez-nous	-
17	4452862		Glass, Outer (biscuit)		Appelez-nous	-
24	4452331		Bracket, Handle				$ 48.67
24	W10276642		Screw   (Replaces: 4451040)				$ 5.49
25	4452119		Retainer, Glass-clip (biscuit)		Appelez-nous	-
25	4450863		Retainer, Glass-clip (black)		Appelez-nous	-
25	4450864		Retainer, Glass-clip (white)		Appelez-nous	-
