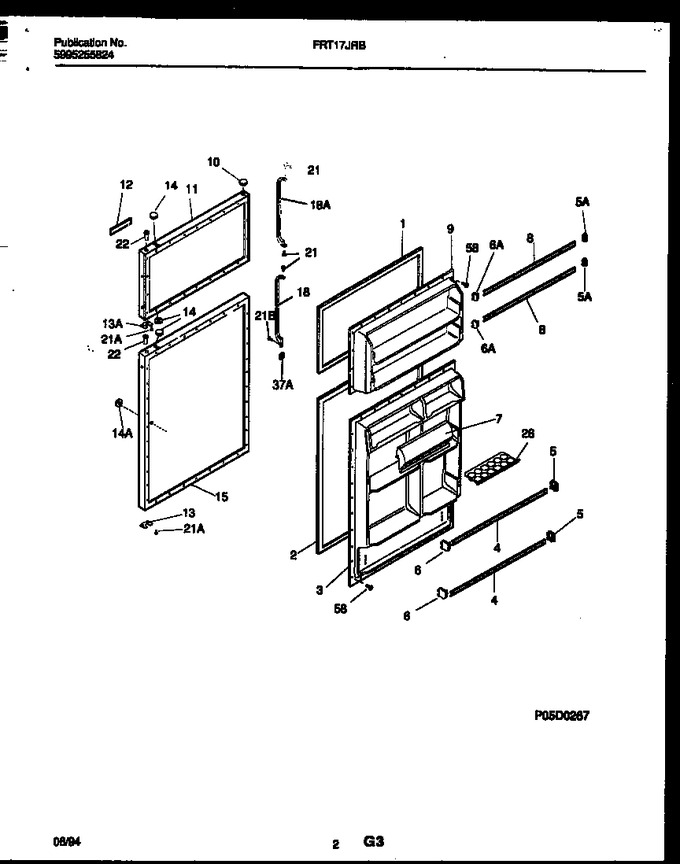

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608911 | Gasket-frzr Door, White, Magnetic |
|
- | |||||
| 2 | 218730603 | Gasket-refr Door, White, Magnetic (Replaces: 215732412) |
|
$ 62.07 | |||||
| 3 | 215026201 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215516220 | Rack-door, (2) (Replaces: 215516215) |
|
$ 54.58 | |||||
| 5 | 5303325990 | Support-door Rack, Rh (Replaces: 5303206644) |
|
Immediately | $ 17.01 | ||||
| 6 | 5303325991 | Support-door Rack, Lh (Replaces: 5303206645) |
|
$ 17.01 | |||||
| 7 | 5303304570 | Door-dairy |
|
- | |||||
| 8 | 215474019 | Rack-door, (2) |
|
- | |||||
| 9 | 5303290026 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917392 | Panel-frzr Door, White, W/insulation |
|
- | |||||
| 12 | 215008601 | Nameplate Assy, White |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr Section |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917390 | Panel-refr Door, White, W/insulation |
|
- | |||||
| 18 | 215482115 | Handle-door, 17.37``, White |
|
- | |||||
| 21 | 5303272566 | Screw-handle Mtg, Cr Oval Head, 10-24(d) X 5/8, White, |
|
- | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 26 | 215817806 | Tray-egg |
|
$ 13.46 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *10258 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 13A | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 14A | 240494001 | Plug-button,white ,refr Door Front , (Replaces: 215352201) |
|
Immediately | $ 18.20 | ||||
| 18A | 215482113 | Handle-door, 17.02``, White |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 21B | 215733200 | Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2 |
|
- | |||||
| 37A | 215480205 | Trim-handle, End Cap, White, Refr Door |
|
- | |||||
| 5A | 5303323480 | Support-door Rack, Rh (Replaces: 5303017377) |
|
$ 14.18 | |||||
| 6A | 5303323481 | Support-door Rack, Lh (Replaces: 5303017380) |
|
Immediately | $ 14.18 |
