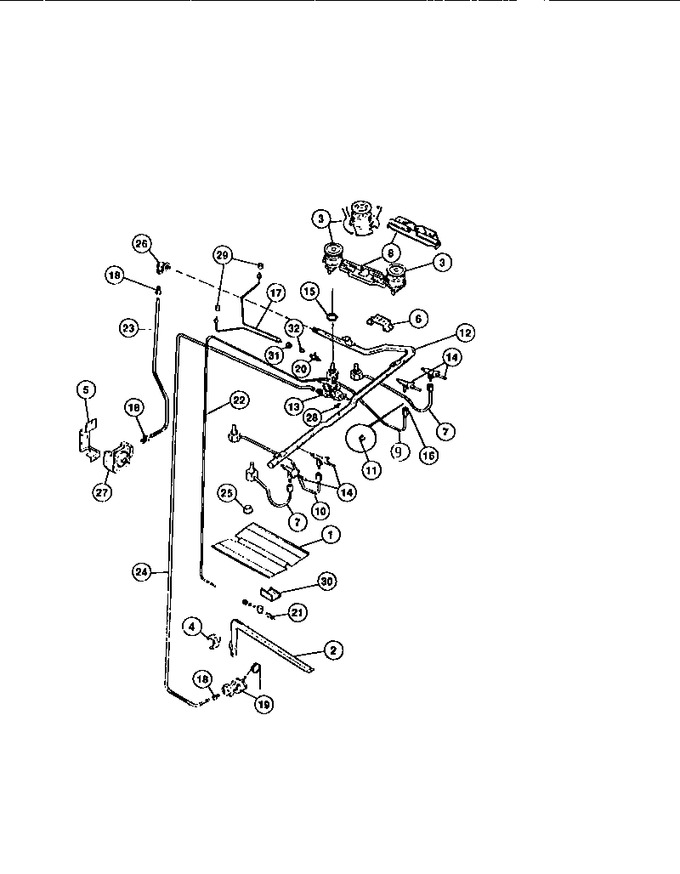

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131327		Baffle, Oven		Appelez-nous	-
2	3131571		Burner, Oven		Appelez-nous	-
3	3131147		Burner-top Assembly		Appelez-nous	-
4	3018603		Bracket-burner Mounting		Appelez-nous	-
5	3131183		Bracket Regulator		Appelez-nous	-
6	3201270		Bracket-burner Mounting		Appelez-nous	-
7	3131970		Burner-tube Front		Appelez-nous	-
9	3011569		Burner Tube-right Rear		Appelez-nous	-
10	3011570		Burner Tube-left Rear		Appelez-nous	-
11	3012358		Ferrule (4)		Appelez-nous	-
12	3201271		Manifold Pipe		Appelez-nous	-
13	3201272		Thermostat		Appelez-nous	-
14	3017542		Valve-top (2 Position)		Appelez-nous	-
15	3013279		Nut, Special				$ 2.34
16	3131148		Nut-compression		Appelez-nous	-
17	3201273		Tube-top Pilot Dual		Appelez-nous	-
18	3131261		Fitting, Loxit		Appelez-nous	-
19	3131405		Valve-safety		Appelez-nous	-
20	3201274		Filter		Appelez-nous	-
21	3018613		Pilot		Appelez-nous	-
22	3018623		Tube-oven Pilot		Appelez-nous	-
23	3014477		Tube-aluminum		Appelez-nous	-
24	3018624		Tube-aluminum		Appelez-nous	-
25	3013272		Nut		Appelez-nous	-
26	3012204		Elbow		Appelez-nous	-
27	3018606		Control-regulator		Appelez-nous	-
28	3018601		Adapter-thermostat		Appelez-nous	-
29	3201275		Cap-top Pilot		Appelez-nous	-
30	3131204		Shield-standing Pilot		Appelez-nous	-
31	3201276		Nut-compression		Appelez-nous	-
32	3201277		Ferrule 3/16``		Appelez-nous	-
32A	3131737		Washer (non-illustrated)				$ 5.59
32B	3131598		Washer (repair) (non-illustrated)		Appelez-nous	-
