SELECT A DIAGRAM

02 - Door Parts


03 - Door Parts


04 - Cabinet Parts


05 - Cabinet Parts


06 - Shelves And Supports


07 - Shelves And Supports


08 - System And Automatic Defrost Parts

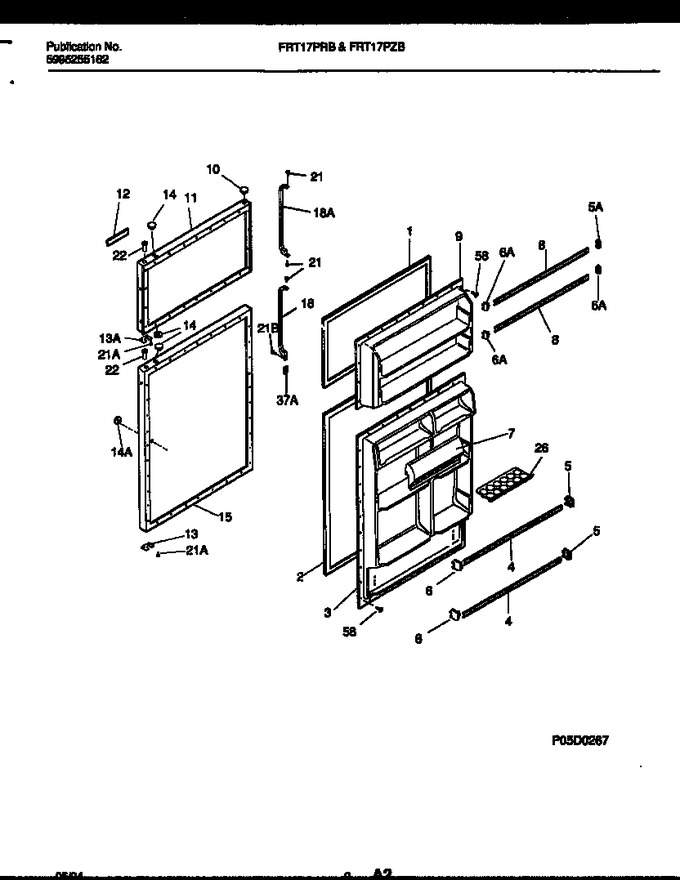

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308007123		Gasket-frzr Door, White, Magnetic				$ 188.54
2	218730603		Gasket-refr Door, White, Magnetic   (Replaces: 5318680311)				$ 62.07
3	215026201		Panel-inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door, (2)   (Replaces: 215516215)				$ 54.58
5	5303325990		Support-door Rack, Rh   (Replaces: 5303206644)			Immediately	$ 17.01
6	5303325991		Support-door Rack, Lh   (Replaces: 5303206645)				$ 17.01
7	5303304570		Door-dairy		Appelez-nous	-
8	215474019		Rack-door, (2)		Appelez-nous	-
9	5303290026		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303208309		Plug-hole, Factory Test				$ 45.50
11	5303917392		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215008601		Nameplate Assy, White		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917390		Panel-refr Door, White, W/insulation		Appelez-nous	-
18	215482115		Handle-door, 17.37``, White		Appelez-nous	-
21	5303272566		Screw-handle Mtg, Cr Oval Head, 10-24(d) X 5/8, White,		Appelez-nous	-
13A	530800255		Door Stop		Appelez-nous	-
14A	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
18A	215482113		Handle-door, 17.02``, White		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
5A	5303323480		Support-door Rack, Rh   (Replaces: 5303017377)				$ 14.18
6A	5303323481		Support-door Rack, Lh   (Replaces: 5303017380)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
