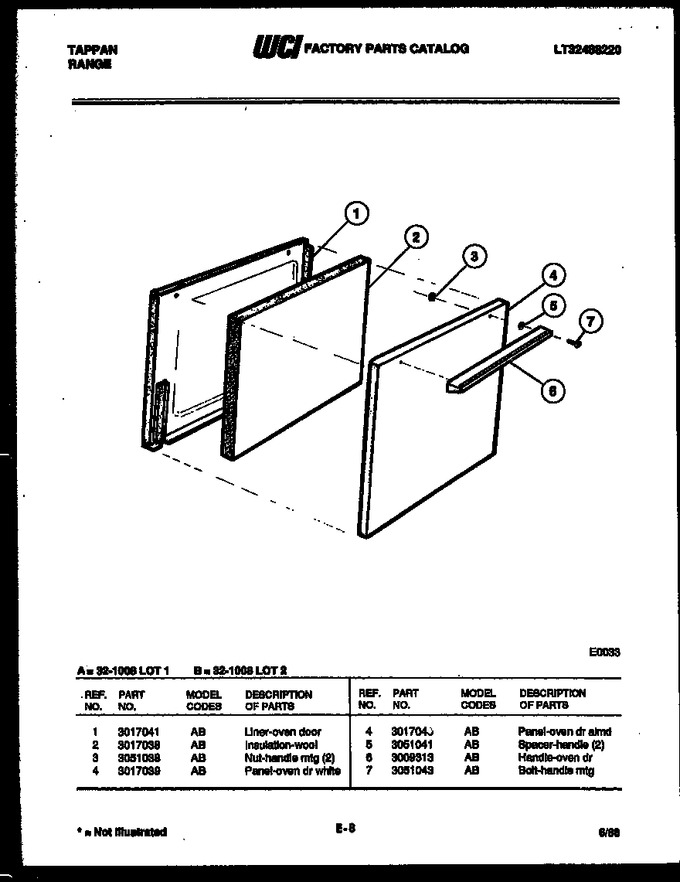

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017041 | Liner-oven Door |
|
- | |||||
| 2 | 3017038 | Insulation-wool |
|
- | |||||
| 3 | 3051038 | Nut-handle Mtg (2) |
|
- | |||||
| 4 | 3017040 | Panel-oven Dr Almd |
|
- | |||||
| 4 | 3017039 | Panel-oven Dr White |
|
- | |||||
| 5 | 3051041 | Spacer Handle (2) |
|
- | |||||
| 6 | 3009313 | Handle-oven Dr |
|
- | |||||
| 7 | 3051043 | Bolt-handle Mtg |
|
- |
