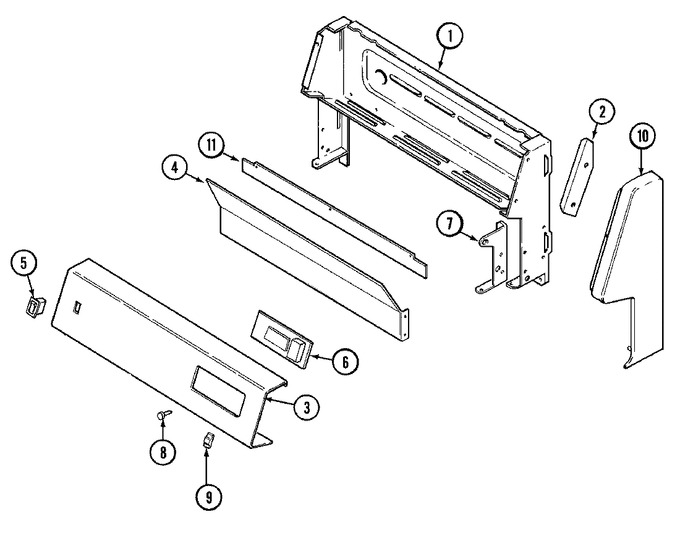

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F097-51 | Housing, Control Panel | 11 |
|
- | ||||
| 2 | 3807F450-45 | Support, Control Pnl (lt) | 11 |
|
- | ||||
| 2 | 3807F449-45 | Support, Control Pnl (rt) | 11 |
|
- | ||||
| 3 | 74002901 | Panel Assy., Control | 11 |
|
- | ||||
| 3 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 11 |
|
Immediately | $ 12.62 | |||
| 4 | 8036P001-60 | Shield | 11 |
|
- | ||||
| 4 | W11233072 | Screw (Replaces: 7118P018-60) | 11 |
|
Immediately | $ 12.62 | |||
| 5 | 7403P067-60 | Switch, Rocker (blk) | 11 |
|
$ 91.35 | ||||
| 6 | 7602P104-60 | Clock | 11 |
|
- | ||||
| 6 | 7101P293-60 | Screw | 11 |
|
- | ||||
| 7 | WPY706189 | Screw (Replaces: 7118P019-60) | 11 |
|
Immediately | $ 6.47 | |||
| 7 | 3418A088-34 | Hinge, Main Top (lt) | 11 |
|
- | ||||
| 7 | 3418A087-34 | Hinge, Main Top (rt) | 11 |
|
- | ||||
| 7 | 7109P020-60 | Washer | 11 |
|
- | ||||
| 8 | 7711P468-60 | Button, Set (blk) | 11 |
|
- | ||||
| 9 | WP74004005 | Screw (Replaces: 7118P013-60) | 11 |
|
$ 6.95 | ||||
| 9 | 7711P469-60 | Button, Slide (blk) | 11 |
|
- | ||||
| 10 | 7726P095-60 | End Cap (rt-blk) | 11 |
|
- | ||||
| 10 | 7101P317-60 | Screw | 11 |
|
- | ||||
| 10 | 7726P096-60 | End Cap (lt-blk) | 11 |
|
- | ||||
| 11 | 3604F188-09 | Shield, Flue | 11 |
|
- | ||||
| 11 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 11 |
|
Immediately | $ 12.62 | |||
| 12 | 5180D140-60 | Harness, Backguard | 11 |
|
- | ||||
| 13 | 16007436 | Manual, Use & Care | 11 |
|
- | ||||
| 14 | 16000326 | Guide, Quick Ref - Jenn-air | 11 |
|
- |
