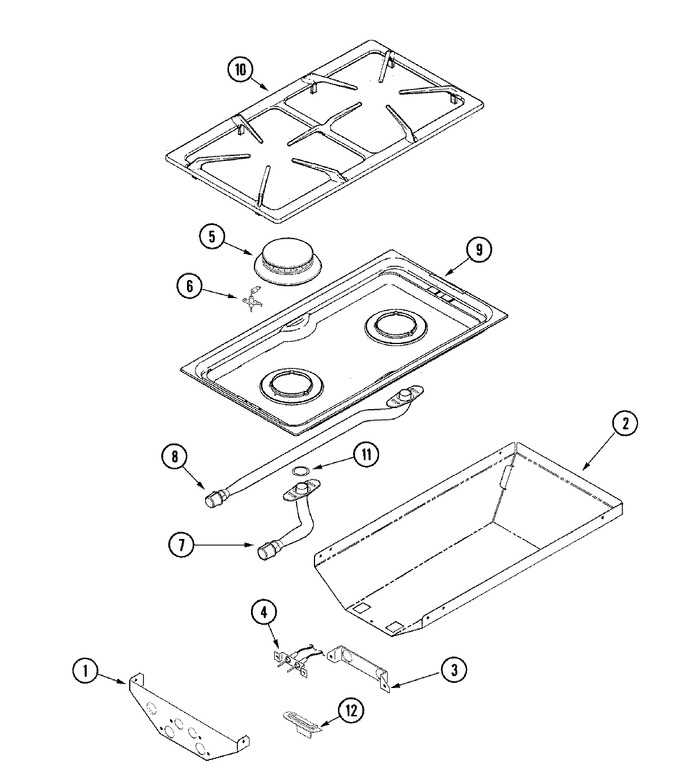

01 - Sealed Burner Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005887 | Cover, Cartridge | 10 |
|
- | ||||
| 1 | 74006935 | Cover, Cartridge | 11 |
|
- | ||||
| 2 | 74005888 | Housing, Cartridge | 10 |
|
- | ||||
| 3 | 74005889 | Bracket, Venturi Alignment | 10 |
|
- | ||||
| 3 | WP355214 | Screw (Replaces: Y700725) | 10 |
|
Immediately | $ 7.26 | |||
| 4 | WP74005890 | Terminal Block W/igniter Wires (Replaces: 74005890) | 10 |
|
$ 73.14 | ||||
| 4 | WP355214 | Screw (Replaces: Y700725) | 10 |
|
Immediately | $ 7.26 | |||
| 5 | WP3403M075-29 | Burner Assy (grey) (Replaces: 74005891) | 10 |
|
$ 209.06 | ||||
| 6 | 74004053 | Igniter, Top Burner | 10 |
|
Immediately | $ 24.25 | |||
| 6 | WPW10253196 | Screw (Replaces: Y707113) | 10 |
|
$ 3.76 | ||||
| 7 | WPW10253196 | Screw (Replaces: Y707113) | 10 |
|
$ 3.76 | ||||
| 7 | WP7538P008-60 | Venturi (front) (Replaces: 74005894) | 10 |
|
$ 182.76 | ||||
| 8 | WPW10253196 | Screw (Replaces: Y707113) | 10 |
|
$ 3.76 | ||||
| 8 | WP7538P009-60 | Venturi (rear) (Replaces: 74005895) | 10 |
|
$ 207.39 | ||||
| 9 | 74005896 | Top (wht) | 10 |
|
- | ||||
| 9 | WPW10253196 | Screw (Replaces: Y707113) | 10 |
|
$ 3.76 | ||||
| 10 | 814323 | Foot, Grate (rubber) (Replaces: 74007573) | 10 |
|
Immediately | $ 10.28 | |||
| 10 | 74005899 | Grate, Burner (gray) | 10 |
|
- | ||||
| 11 | WP74005893 | Seal (brass) (Replaces: 74005893) | 10 |
|
$ 6.64 | ||||
| 12 | 74006934 | Guard, Corner | 11 |
|
- |
