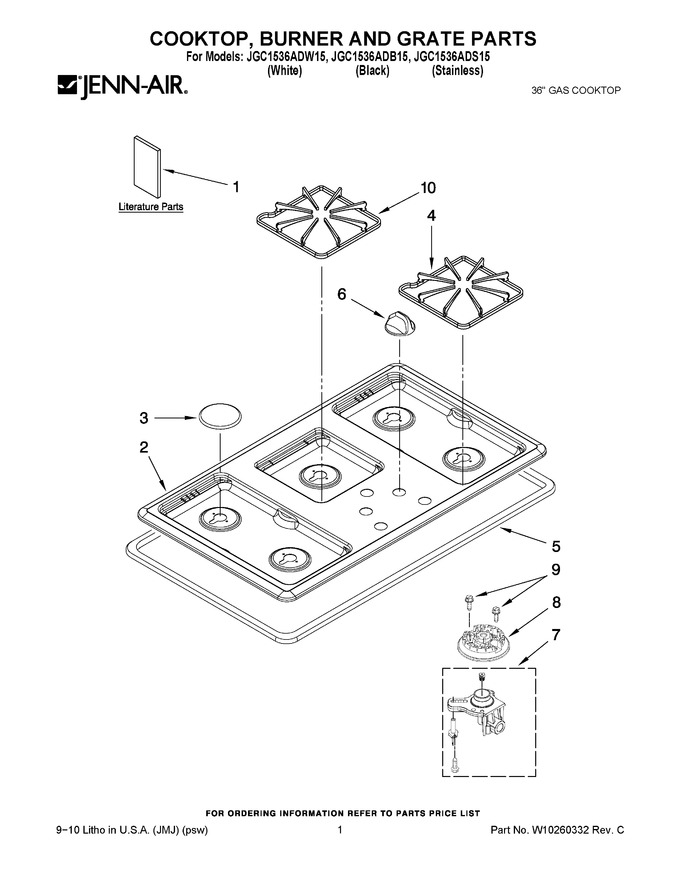

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P736-60 | Installation Instructions |
|
- | |||||
| 1 | 8111P536-60 | Use & Care Guide |
|
- | |||||
| 1 | W10204418 | Wiring Diagram (english) |
|
- | |||||
| 1 | W10205174 | Wiring Diagram (french) |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | 2001N297-81 | Cooktop (white) |
|
- | |||||
| 2 | 2001N297-09 | Cooktop (black) |
|
- | |||||
| 2 | 2001N295-55 | Cooktop (stainless) |
|
$ 219.11 | |||||
| 3 | 7504P204-60 | Cap, Burner (15k Black) |
|
- | |||||
| 3 | 7504P165-60 | Cap, Burner (12.5k Black) |
|
- | |||||
| 3 | WP8284669 | Cap, Burner (5k Black) (Replaces: 7504P202-60) |
|
Immediately | $ 64.79 | ||||
| 4 | 7518P435-60 | Grate, Burner (4) (black) |
|
$ 120.50 | |||||
| 5 | 8270P107-60 | Seal, Foam |
|
- | |||||
| 6 | W10168627 | Knob, Control (5) (black) |
|
$ 22.24 | |||||
| 7 | 7527P114-60 | Holder, Orifice (rf) |
|
Immediately | $ 101.98 | ||||
| 7 | 74007786 | Holder, Orifice (ctr) |
|
- | |||||
| 7 | WP7527P028-60 | Holder, Orifice (lr) (Replaces: 74007813) |
|
Immediately | $ 100.76 | ||||
| 7 | WP7527P026-60 | Holder, Orifice (lf/rr) (Replaces: 74007814) |
|
Immediately | $ 95.68 | ||||
| 8 | WPW10406878 | Head, Burner (rf) (Replaces: 8286183) |
|
Immediately | $ 92.12 | ||||
| 8 | WPW10406797 | Head, Burner (lr/rr/lf) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 8 | WPW10406243 | Head, Burner Ctr. (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 9 | WP3368921 | Screw (Replaces: 7101P685-60) |
|
Immediately | $ 6.42 | ||||
| 10 | 7518P436-60 | Grate, Center (black) |
|
- |
