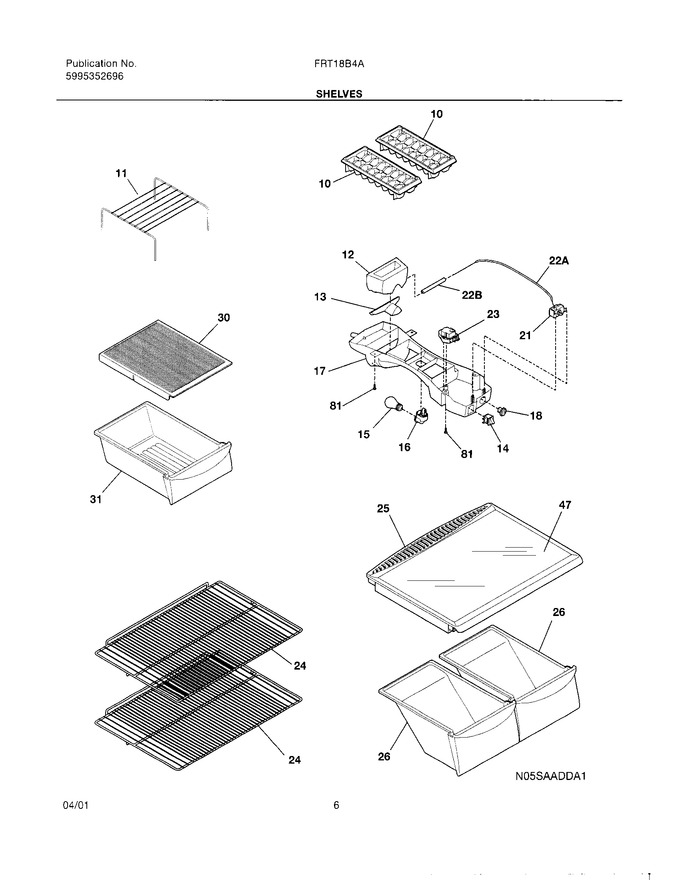

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 215667501 | Tray-ice,plastic (optiional Accessory) |
|
Immediately | $ 6.07 | ||||
| 11 | 5303282284 | Shelf-freezer,``table Type`` |
|
Immediately | $ 88.05 | ||||
| 12 | 240362501 | Diffuser-air,top |
|
- | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 41.81 | ||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 241559801 | Socket-light/lamp (Replaces: 241500701) |
|
$ 72.68 | |||||
| 17 | 240352701 | Control Box |
|
- | |||||
| 18 | 240360801 | Knob-control |
|
$ 43.95 | |||||
| 21 | 5304418228 | Control-temperature |
|
$ 188.06 | |||||
| 22 | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 60.96 | |||||
| 22 | 218731105 | Tube,pvc ,white ,@ Air Diffuser ,insulator |
|
- | |||||
| 23 | 215846602 | Timer-defrost,60 Hz ,120 V ,10 Hour/30 Min (Replaces: 215846606) |
|
Immediately | $ 28.20 | ||||
| 24 | 240360908 | Shelf-sliding,refr ,(3) (Replaces: 240360905) |
|
Immediately | $ 94.98 | ||||
| 25 | 242201802 | Cover-crisper Pan,w/ Beam ,less Insert (Replaces: 240364701) |
|
Immediately | $ 123.10 | ||||
| 26 | 240337101 | Pan-crisper,white ,(2) ,no Graphics |
|
$ 109.78 | |||||
| 30 | 240361801 | Hanger-meat Pan,drop Thru |
|
- | |||||
| 31 | 240530811 | Pan-meat,white ,no Graphics (Replaces: 240354201) |
|
Immediately | $ 135.77 | ||||
| 47 | 240350608 | Insert-pan Cover,glass |
|
Immediately | $ 45.50 | ||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| NI | 240392601 | Seal-diffuser |
|
$ 6.57 | |||||
| NI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 80.09 |
