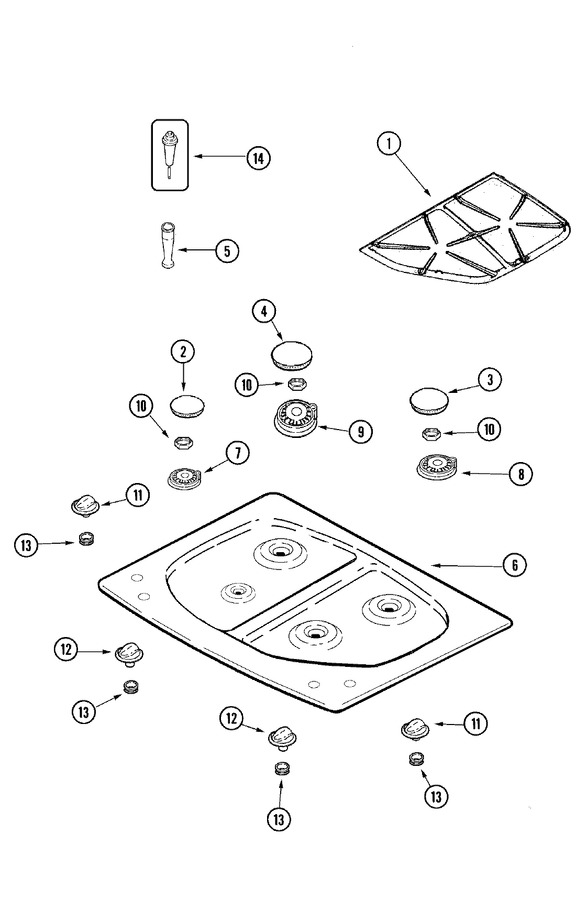

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74005938		Grate (lt-gry)	10	Appelez-nous	-
1	74005937		Grate (rt-gry)	10	Appelez-nous	-
2	74005966		Cap, Burner (sml-gry)	10	Appelez-nous	-
2	74007198		Cap, Burner (med-taupe)	13	Appelez-nous	-
2	74007192		Cap, Burner (smr-mt Gry)	13			$ 35.69
3	74007197		Cap, Burner (med-mt Gry)	13			$ 33.03
3	74005967		Cap, Burner (med-gry)	10	Appelez-nous	-
4	74005968		Cap, Burner (lrg-gry)	10	Appelez-nous	-
4	74007204		Cap, Burner (lg-mt Gry)	13			$ 58.08
5	WP7538P003-60		Venturi   (Replaces: 71002747)	10			$ 88.55
6	74005930		Top, Main (wht)	10	Appelez-nous	-
7	WP7540P028-60		Burner, Base (smr)   (Replaces: 74007181)	13			$ 48.41
7	WP7540P028-60		Burner, Base (smr)   (Replaces: 74007181)	11			$ 48.41
7	WP7540P028-60		Base, Burner   (Replaces: 74005955)	10			$ 48.41
8	74007182		Burner, Base (sm)	11			$ 49.55
8	74005956		Base, Burner	10	Appelez-nous	-
8	74007182		Burner, Base (sm)	13			$ 49.55
9	74007183		Burner, Base (lrg)	11	Appelez-nous	-
9	74005957		Base, Burner	10	Appelez-nous	-
9	74007183		Burner, Base (lrg)	13	Appelez-nous	-
10	WP7103P178-60		Nut, Mounting   (Replaces: 71002746)	10			$ 6.26
11	74005942		Knob, Burner (wht-shrt Shaft)	10	Appelez-nous	-
12	74005941		Knob, Burner (wht-long Shaft)	10			$ 29.85
13	WP74005934		Grommet   (Replaces: 74005934)	10			$ 7.66
14	WP7432P109-60		Igniter   (Replaces: 71002724)	10			$ 47.83
15	74005960		Harness, Main Wire	10	Appelez-nous	-
16	74005962		Harness, Spark Lead	10	Appelez-nous	-
17	74005959		Kit, Lp Orifice	10	Appelez-nous	-
18	74005527		Manual, Use & Care	10	Appelez-nous	-
19	74005475		Guide, Cooking (trilingual)	10	Appelez-nous	-
