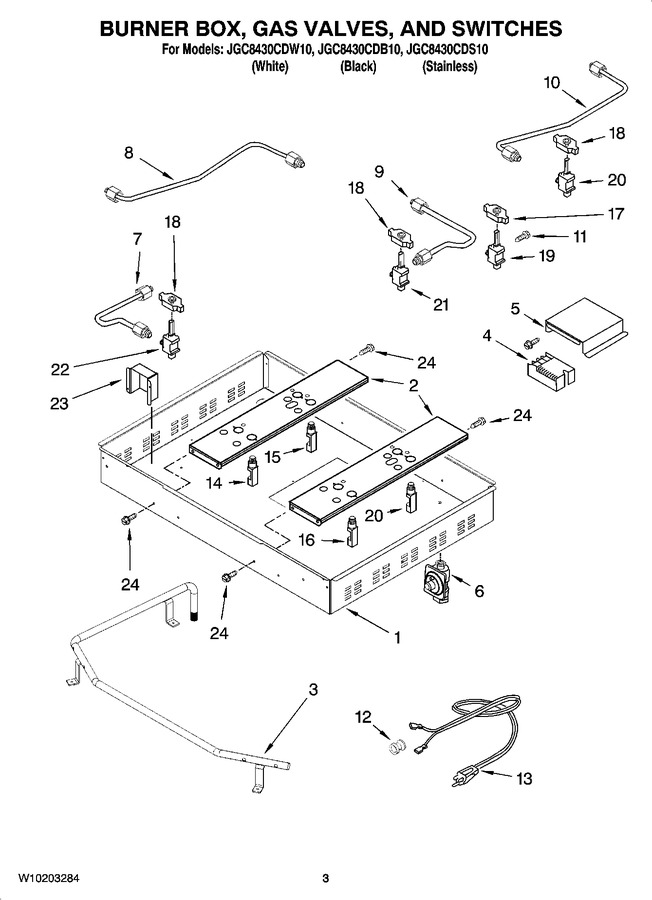

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10203541		Box, Burner		Appelez-nous	-
2	74009545		Support Burner (2)		Appelez-nous	-
3	74007997		Pipe, Manifold		Appelez-nous	-
4	WPW10475147		Module, Spark   (Replaces: 71002783)			Immediately	$ 214.42
5	W10203556		Cover, Spark Mod		Appelez-nous	-
6	W11087445		Regulator, Prsr   (Replaces: 74007747)			Immediately	$ 177.34
7	74007755		Tube, Burner (lf)		Appelez-nous	-
8	74007756		Tube, Burner (lr)				$ 67.52
9	74007757		Tube, Burner (rf)				$ 31.24
10	74007758		Tube, Burner (rr)		Appelez-nous	-
11	71003231		Screw, Valve		Appelez-nous	-
12	550707		Relief, Strain		Appelez-nous	-
13	3188867		Cord, Power   (Replaces: 74007903)				$ 168.08
14	71002720		Holder W/orifice (6.5k) (lf,rr)		Appelez-nous	-
15	WP7527P033-60		Holder W/orifice (12.5k) (lr)   (Replaces: 74007998)				$ 65.54
16	WP7527P004-60		Holder W/orifice (15k) (rf)   (Replaces: 74007766)				$ 72.90
17	WP74007753		Switch, Igniter (lt)   (Replaces: 74007753)				$ 121.78
18	WP74007774		Switch, Igniter (rt)   (Replaces: 74007774)				$ 122.99
19	W10203501		Burner, Valve (lr)		Appelez-nous	-
20	W10203511		Burner, Valve (lf)		Appelez-nous	-
21	W10203512		Burner, Valve (rf)		Appelez-nous	-
22	W10203514		Burner, Valve (rr)		Appelez-nous	-
23	74006339		Brkt, Hold Down		Appelez-nous	-
24	WP90767		Screw   (Replaces: Y700502)			Immediately	$ 7.04
NI	74007746		Kit, Lp Orifice		Appelez-nous	-
NI	W10203495		Harness, Main		Appelez-nous	-
NI	74005963		Harness,spark(rt)		Appelez-nous	-
