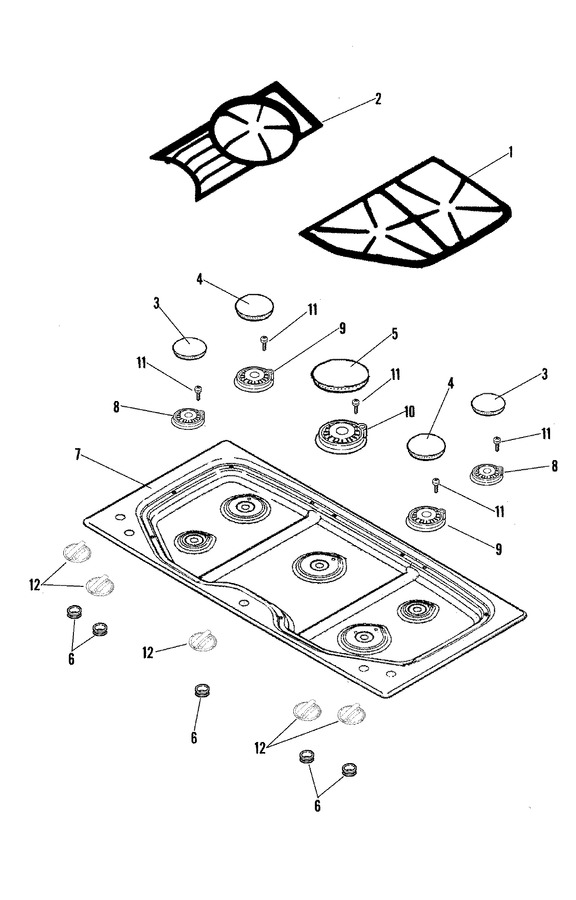

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Supplemental Information
03 - Top Assembly
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74007741 | Grate, Burner (taupe-rt) | 10 |
|
- | ||||
| 1 | 74007740 | Grate, Burner (taupe-lt) | 10 |
|
- | ||||
| 2 | 74007742 | Grate, Burner (taupe-ctr) | 10 |
|
- | ||||
| 3 | WP74007419 | Cap, Burner (smr-taupe) (Replaces: 74007419) | 10 |
|
$ 66.47 | ||||
| 4 | 74007751 | Cap, Burner (med-taupe) | 10 |
|
$ 41.96 | ||||
| 5 | WP74007417 | Cap, Burner (lrg-taupe) (Replaces: 74007417) | 10 |
|
$ 121.73 | ||||
| 6 | WP74007705 | Grommet (Replaces: 74007705) | 10 |
|
Immediately | $ 6.80 | |||
| 7 | 74007730 | Top, Main (bsq) | 10 |
|
- | ||||
| 8 | 74007734 | Burner Assembly (small) | 10 |
|
$ 107.79 | ||||
| 8 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 9 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 9 | 74007735 | Burner Assembly (lrg) | 10 |
|
Immediately | $ 102.76 | |||
| 10 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 10 | 74007736 | Burner Assembly (x-lrg) | 10 |
|
Immediately | $ 105.36 | |||
| 11 | W11772394 | Screw, Burner Base (Replaces: 74007714) | 10 |
|
Immediately | $ 10.94 | |||
| 12 | WP7733P410-60 | Knob, Burner (chr) (Replaces: 74007733) | 10 |
|
Immediately | $ 22.35 | |||
| 13 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 13 | WP8273062 | Screw, Ignitor (Replaces: 74009337) | 10 |
|
Immediately | $ 7.12 |
