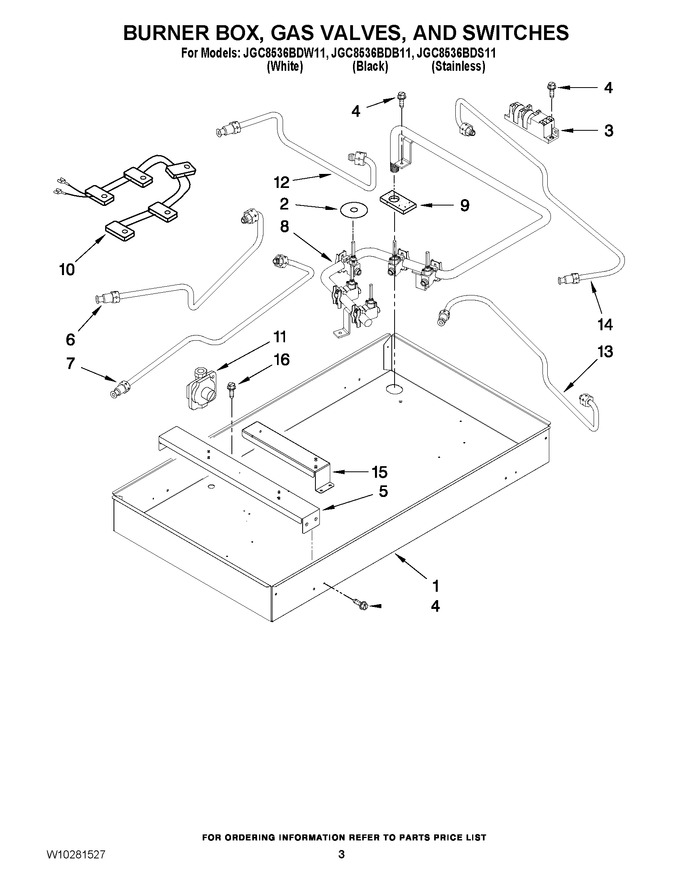

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10247661 | Burner Box |
|
- | |||||
| 2 | WP74007705 | Seal, Valve Shaft (Replaces: 8008P065-60) |
|
Immediately | $ 6.80 | ||||
| 3 | WP8286828 | Spark Module (Replaces: 7431P049-60) |
|
$ 297.59 | |||||
| 4 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 5 | 3801F892-51 | Orifice Holder (2) (right) |
|
- | |||||
| 5 | 3801F891-51 | Orifice Holder (2) (left) |
|
- | |||||
| 5 | 3801F755-51 | Bracket, Orifice Holder (2) |
|
$ 65.96 | |||||
| 6 | 7506P370-60 | Tubing, Gas (left Front) |
|
- | |||||
| 7 | 74007756 | Tubing, Gas (left Rear) (Replaces: 7506P371-60) |
|
$ 67.52 | |||||
| 8 | 7513P297-60 | Pipe, Manifold (includes Valves) |
|
- | |||||
| 9 | WP74001380 | Seal, Manifold Pipe Inlet (Replaces: 7208P024-60) |
|
$ 58.91 | |||||
| 10 | WP74007753 | Harness & Switches (left) (Replaces: 74007753) |
|
$ 121.78 | |||||
| 10 | WP74007774 | Harness & Switches (right) (Replaces: 74007774) |
|
$ 122.99 | |||||
| 10 | 74007773 | Harness & Switches (center) |
|
$ 54.88 | |||||
| 11 | W11087445 | Regulator, Pressure (Replaces: 7510P093-60) |
|
Immediately | $ 177.34 | ||||
| 12 | 7506P369-60 | Tubing, Gas (center) |
|
- | |||||
| 13 | 7506P372-60 | Tubing, Gas (right Front) |
|
- | |||||
| 14 | 7506P373-60 | Tubing, Gas (right Rear) |
|
- | |||||
| 15 | 3801F890-51 | Bracket, Center Orifice Holder |
|
- | |||||
| 16 | WP71001171 | Screw, Ground (Replaces: 7101P460-60) |
|
$ 6.26 |
