SELECT A DIAGRAM

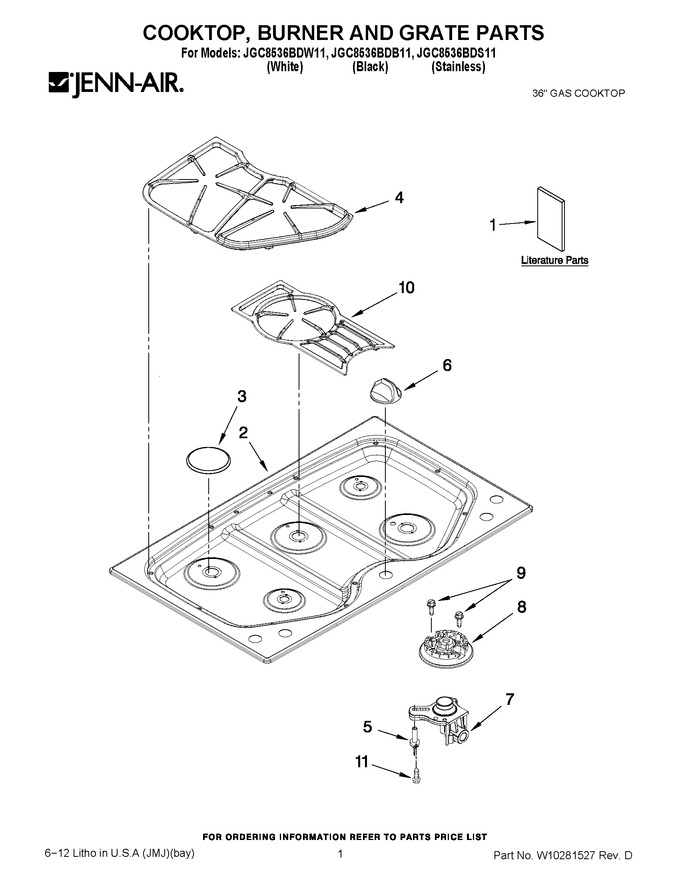

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10205174		Wiring Diagram (french)		Appelez-nous	-
1	8111P537-60		Use & Care Guide		Appelez-nous	-
1	W10210795		Wiring Diagram (english)		Appelez-nous	-
1	8101P643-60		Installation Instructions		Appelez-nous	-
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
2	2001N306-55		Cooktop (stainless)		Appelez-nous	-
2	2001N305-81		Cooktop (white)		Appelez-nous	-
2	2001N305-09		Cooktop (black)		Appelez-nous	-
3	WP8284669		Cap, Burner (lf & Rr)   (Replaces: 7504P202-60)			Immediately	$ 64.79
3	7504P204-60		Cap, Burner (ctr)		Appelez-nous	-
3	WP74007925		Cap, Burner (black)   (Replaces: 7504P219-60)				$ 86.81
3	7504P165-60		Cap, Burner (lr & Rf)		Appelez-nous	-
4	7518P423-60		Grate, Burner (left)		Appelez-nous	-
4	7518P424-60		Grate, Burner (right)		Appelez-nous	-
5	WP74009336		Ignitor   (Replaces: 7432P121-60)			Immediately	$ 24.30
6	WP7733P508-60		Knob, Control (5) (platinum)   (Replaces: 7733P508-60)				$ 22.43
7	WP7527P003-60		Holder, Orifice (rf)   (Replaces: 7527P003-60)				$ 69.37
7	WP7527P004-60		Holder, Orifice (ctr)   (Replaces: 7527P004-60)				$ 72.90
7	WP7527P002-60		Holder, Orifice (lr)   (Replaces: 7527P002-60)				$ 72.90
7	74009553		Holder, Orifice (lf, Rr)   (Replaces: 7527P042-60)				$ 75.27
8	74007734		Head, Burner (lf & Rr)   (Replaces: 7505P304-60)				$ 107.79
8	74007735		Head, Burner (lr & Rf)   (Replaces: 7505P305-60)			Immediately	$ 102.76
8	74007736		Head, Burner (ctr)   (Replaces: 7505P306-60)			Immediately	$ 105.36
9	WP3368921		Screw   (Replaces: 7101P685-60)			Immediately	$ 6.42
10	7518P440-60		Grate, Center (black)		Appelez-nous	-
11	WP8273062		Screw   (Replaces: 7101P606-60)			Immediately	$ 7.12

    View Diagram in Separate Window       Print Part List
