01 - Cooktop, Burner And Grate Parts

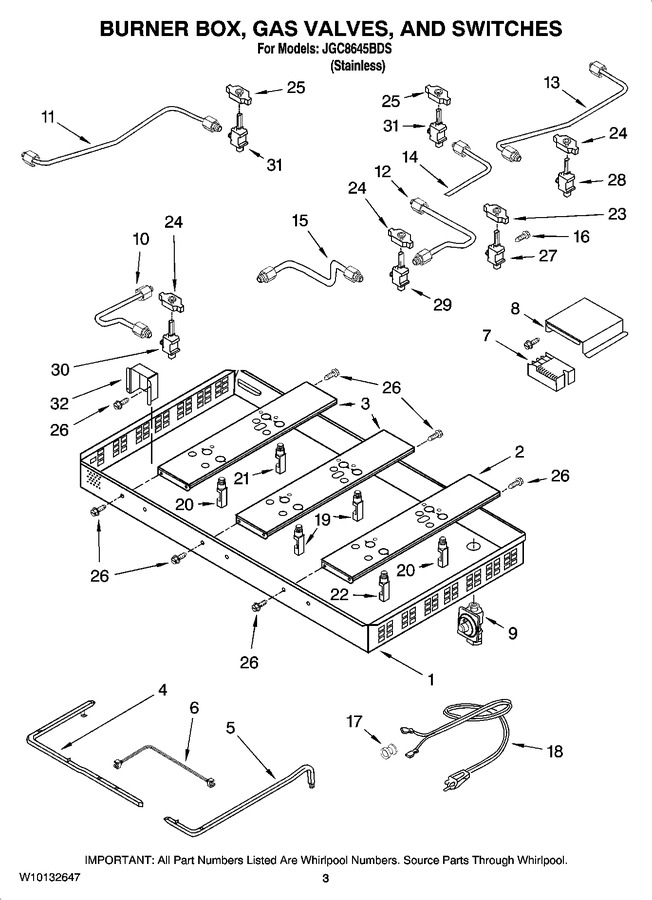

02 - Burner Box, Gas Valves, And Switches, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74009562		Box, Burner		Appelez-nous	-
2	74005976		Rail, Burner (ctr)		Appelez-nous	-
3	74005952		Rail,burner(side)		Appelez-nous	-
4	74005971		Pipe, Manifold (rt)		Appelez-nous	-
5	74009650		Pipe,manifold(lt)		Appelez-nous	-
6	74005972		Tube, Crossover		Appelez-nous	-
7	WP71002749		Module, Spark   (Replaces: 71002749)				$ 300.87
8	74005933		Cover, Spark Mod		Appelez-nous	-
9	W11106948		Regulator, Prsr   (Replaces: 704545)			Immediately	$ 215.01
10	74005948		Tube, Burner (lf)		Appelez-nous	-
11	74005949		Tube, Burner (lr)		Appelez-nous	-
12	74005950		Tube, Burner (rf)		Appelez-nous	-
13	74005951		Tube, Burner (rr)		Appelez-nous	-
14	74005974		Tube, Burner (cf)		Appelez-nous	-
15	74005975		Tube, Burner (cr)		Appelez-nous	-
16	71003231		Screw, Valve		Appelez-nous	-
17	705833		Relief, Strain		Appelez-nous	-
18	3188867		Cord, Power   (Replaces: 74007903)				$ 168.08
19	71002720		Holder W/orifice (6.5k) (cntr)		Appelez-nous	-
20	74005977		Holder W/orifice (9.1k) (lf,rr)		Appelez-nous	-
21	74005978		Holder W/orifice (10.5k) (lr)		Appelez-nous	-
22	71003150		Holder W/orifice (15k) (rf)		Appelez-nous	-
23	74005953		Switch,igniter(lr)				$ 109.43
24	WP74005954		Switch, Igniter   (Replaces: 74005954)				$ 117.71
25	74005979		Switch,igntr(ctr)		Appelez-nous	-
26	WP90767		Screw   (Replaces: 700502)			Immediately	$ 7.04
27	74005944		Burner,valve(lr)		Appelez-nous	-
28	74005945		Burner,valve(lf)				$ 172.63
29	74005946		Burner,valve(rf)				$ 113.91
30	74005947		Burner,valve(rr)		Appelez-nous	-
31	74005973		Burner,valve(ctr)		Appelez-nous	-
32	74006339		Brkt, Hold Down		Appelez-nous	-
NI	3804F247-45		Retainer, Insul.		Appelez-nous	-
NI	W10214271W		Dor-fip Wh		Appelez-nous	-
NI	74005988		Kit, Lp Orifice		Appelez-nous	-
NI	74005961		Harness,main		Appelez-nous	-
NI	74005963		Harness,spark(rt)		Appelez-nous	-
NI	74005964		Harness,spark(lt)		Appelez-nous	-
