01 - Body
02 - Supplemental Information

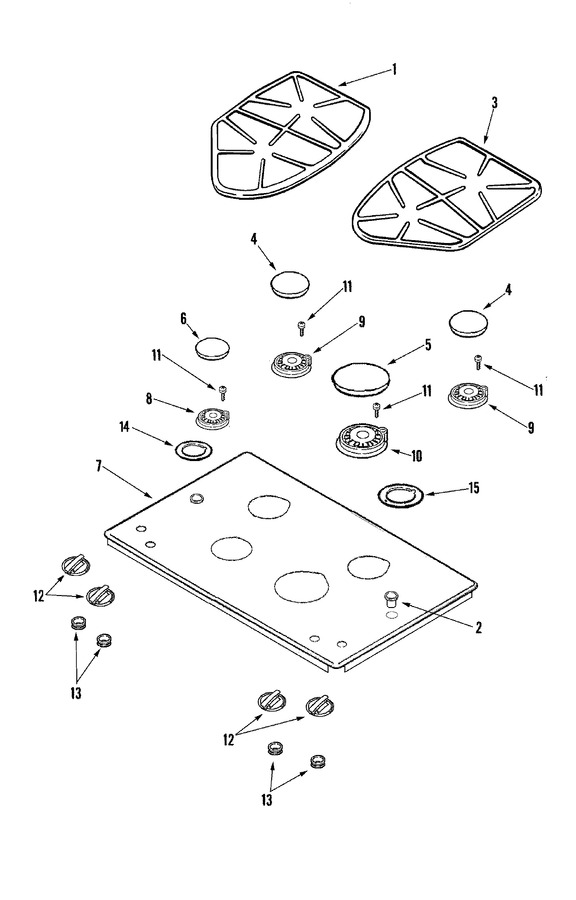

03 - Top Assembly
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74008002 | Grate (blk) | 10 |
|
- | ||||
| 2 | 74007982 | Washer | 10 |
|
$ 6.44 | ||||
| 2 | 74007983 | Ring, Retaining | 10 |
|
$ 13.45 | ||||
| 2 | 74007981 | Grommet, Grate Foot (blk) | 10 |
|
$ 21.17 | ||||
| 3 | 74008001 | Grate (blk) | 10 |
|
- | ||||
| 4 | WP74007925 | Cap, Burner (med-blk) (Replaces: 74007925) | 10 |
|
$ 86.81 | ||||
| 5 | 74007414 | Cap, Burner (lrg-blk) | 10 |
|
- | ||||
| 6 | WP3191898 | Cap, Burner (smr-blk) (Replaces: 74007416) | 10 |
|
$ 60.86 | ||||
| 7 | 74008010 | Top Assembly (blk) | 10 |
|
- | ||||
| 8 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 8 | 74007734 | Burner Assembly (small) | 10 |
|
$ 107.79 | ||||
| 9 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 9 | 74007735 | Burner Assembly (lrg) | 10 |
|
Immediately | $ 102.76 | |||
| 10 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 10 | 74007736 | Burner Assembly (x-lrg) | 10 |
|
Immediately | $ 105.36 | |||
| 11 | W11772394 | Screw, Burner Base (Replaces: 74007714) | 10 |
|
Immediately | $ 10.94 | |||
| 12 | WP7733P410-60 | Knob, Burner (chr) (Replaces: 74007733) | 10 |
|
Immediately | $ 22.35 | |||
| 13 | WP8008P071-60 | Grommet, Spill (blk) (Replaces: 71002579) | 10 |
|
$ 8.02 | ||||
| 14 | 74010651 | Gasket, Fiberglass (sml-bnr) | 10 |
|
$ 59.99 | ||||
| 15 | WP74010652 | Gasket, Fiberglass (Replaces: 74010652) | 10 |
|
$ 73.71 |
