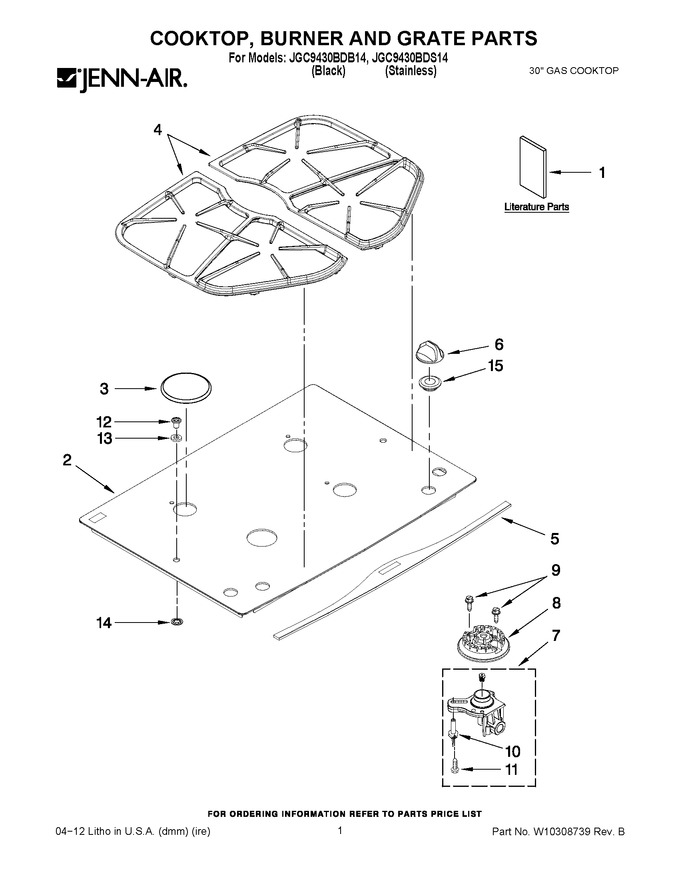

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10203804		Installation Instructions		Appelez-nous	-
1	W10204447		Use & Care Guide		Appelez-nous	-
1	W10210794		Wiring Diagram (english)		Appelez-nous	-
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
2	W10305198		Cooktop				$ 545.11
3	7504P204-60		Cap, Burner (rf)		Appelez-nous	-
3	WP8284669		Cap, Burner (lf)   (Replaces: 7504P202-60)			Immediately	$ 64.79
3	7504P165-60		Cap, Burner (lr & Rr)		Appelez-nous	-
4	7518P456-60		Grate (left)				$ 159.48
4	7518P457-60		Grate (right)				$ 153.39
5	W10168883		Trim,cooktop Ss Model Only (rear)				$ 56.79
5	W10168877		Trim,cooktop Ss Model Only (front)				$ 117.19
6	WPW10168628		Knob, Control (5)   (Replaces: W10168628)				$ 55.53
7	7527P118-60		Holder, Orifice (lf (5k))		Appelez-nous	-
7	7527P117-60		Holder, Orifice (rr (9.2k))		Appelez-nous	-
7	7527P116-60		Holder, Orifice (rf (15k))				$ 121.68
7	WP7527P119-60		Holder, Orifice (lr (10.5k))   (Replaces: 7527P119-60)				$ 80.49
8	74007736		Head, Burner (rf)   (Replaces: 7505P306-60)			Immediately	$ 105.36
8	74007735		Head, Burner (lr & Rr)   (Replaces: 7505P305-60)			Immediately	$ 102.76
8	7505P339-60		Head, Burner (lf)				$ 57.66
9	WP3368921		Screw   (Replaces: 7101P685-60)			Immediately	$ 6.42
10	WP74009336		Ignitor   (Replaces: 7432P121-60)			Immediately	$ 24.30
11	WP8273062		Screw   (Replaces: 7101P606-60)			Immediately	$ 7.12
12	8008P064-60		Grommet, Grate		Appelez-nous	-
13	7109P081-60		Washer		Appelez-nous	-
14	7114P008-60		Ring, Retaining		Appelez-nous	-
15	WP8008P071-60		Grommet (4)   (Replaces: 8008P071-60)				$ 8.02
