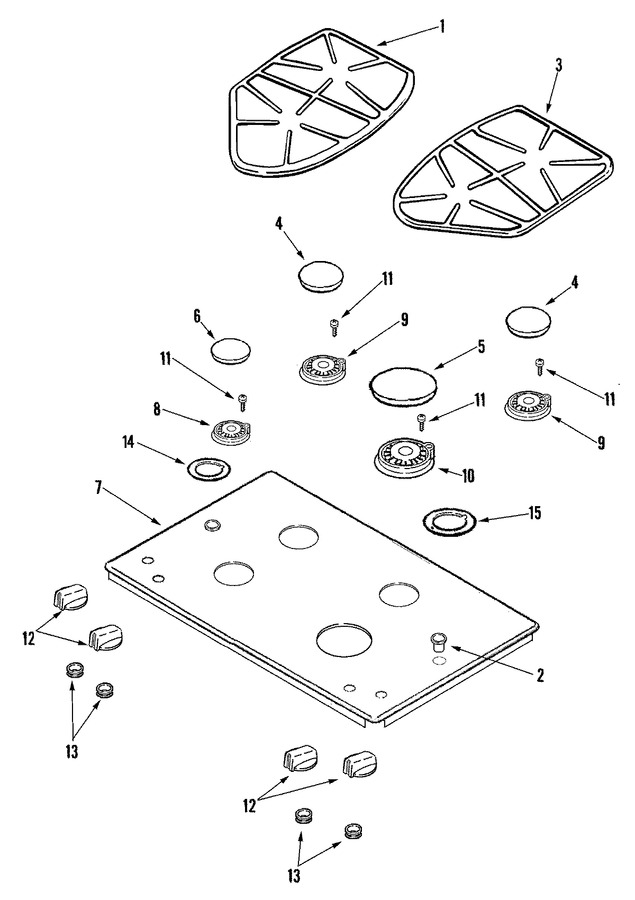

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74008001 | Grate (blk-rt) | 10 |
|
- | ||||
| 2 | 74007982 | Washer | 10 |
|
$ 6.44 | ||||
| 2 | 74007983 | Ring, Retaining | 10 |
|
$ 13.45 | ||||
| 5 | 74007750 | Cap, Burner (ex-lrg/blk) | 10 |
|
- | ||||
| 7 | 7920P182-60 | Top Assembly (brnz) | 10 |
|
- | ||||
| 8 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 9 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 10 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 11 | W11772394 | Screw, Burner Base----s (Replaces: 74007714) | 10 |
|
Immediately | $ 10.94 | |||
| 14 | 74010651 | Gasket, Fiberglass (sml-bnr) | 10 |
|
$ 59.99 | ||||
| 15 | WP74010652 | Gasket, Fiberglass (Replaces: 74010652) | 10 |
|
$ 73.71 |
