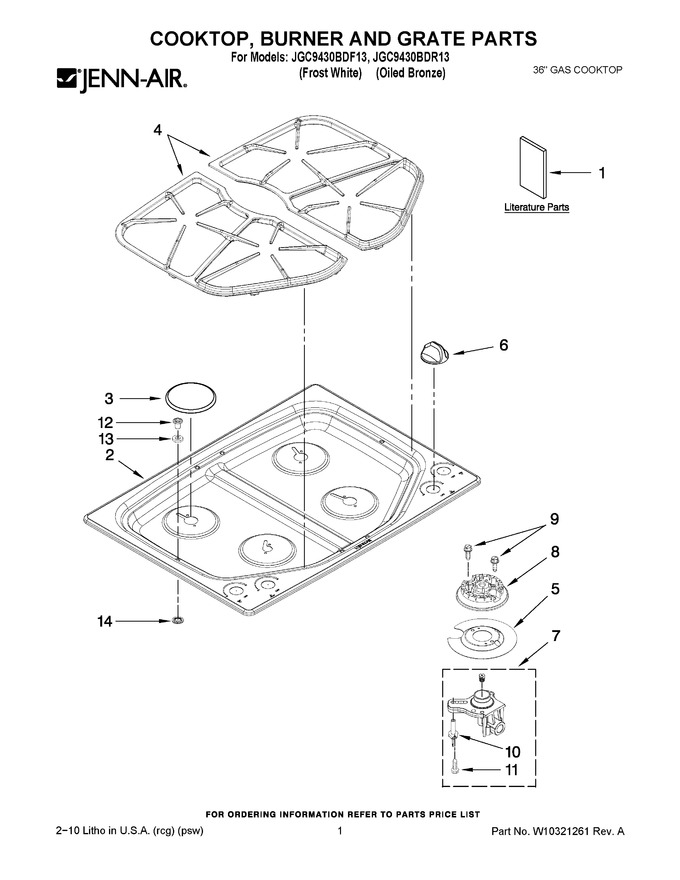

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8101P502-60		Installation Instructions		Appelez-nous	-
1	8112P341-60		Use & Care Guide		Appelez-nous	-
1	8104P915-60		Wiring Diagram		Appelez-nous	-
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
2	7920P177-60		Cooktop (frost White)		Appelez-nous	-
2	7920P214-60		Cooktop (oiled Bronze)		Appelez-nous	-
3	7504P204-60		Cap, Burner (rf)		Appelez-nous	-
3	WP8284669		Cap, Burner (lf)   (Replaces: 7504P202-60)			Immediately	$ 64.79
3	7504P165-60		Cap, Burner (lr & Rr)		Appelez-nous	-
4	7518P457-60		Grate (right)				$ 153.39
4	7518P456-60		Grate (left)				$ 159.48
5	3605F335-51		Plate, Orifice Holder (large (3))		Appelez-nous	-
5	3605F334-51		Plate, Orifice Holder (small (1))				$ 8.09
6	WPW10168628		Knob, Control (4)   (Replaces: W10168628)				$ 55.53
7	7527P034-60		Holder, Orifice (rf (15k))		Appelez-nous	-
7	WP7527P033-60		Holder, Orifice (lr (10.5k))   (Replaces: 7527P033-60)				$ 65.54
7	74009553		Holder, Orifice (lf (5k))   (Replaces: 7527P042-60)				$ 75.27
7	7527P029-60		Holder, Orifice (rr (9.2k))		Appelez-nous	-
8	74007734		Head, Burner (lf)   (Replaces: 7505P304-60)				$ 107.79
8	74007736		Head, Burner (rf)   (Replaces: 7505P306-60)			Immediately	$ 105.36
8	74007735		Head, Burner (lr & Rr)   (Replaces: 7505P305-60)			Immediately	$ 102.76
9	WP3368921		Screw   (Replaces: 7101P685-60)			Immediately	$ 6.42
10	WP74009336		Ignitor   (Replaces: 7432P121-60)			Immediately	$ 24.30
11	WP8273062		Screw   (Replaces: 7101P606-60)			Immediately	$ 7.12
12	8008P064-60		Grommet, Grate (black)		Appelez-nous	-
12	8008P063-60		Grommet, Grate (white)		Appelez-nous	-
13	7109P081-60		Washer		Appelez-nous	-
14	7114P008-60		Ring, Retaining		Appelez-nous	-
