SELECT A DIAGRAM

01 - Body


02 - Supplemental Information


03 - Top Assembly


04 - Wiring Information

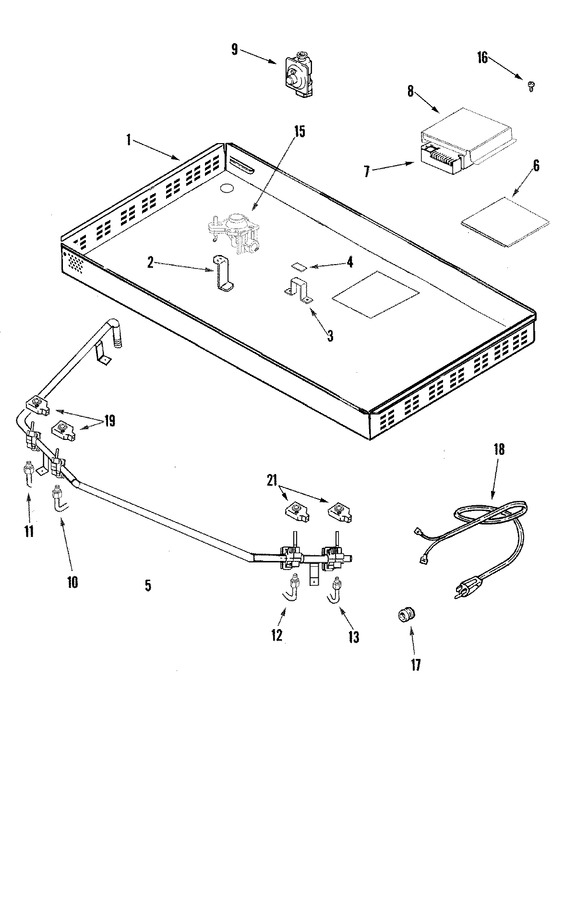

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74007967		Bottom. Burner Box	10	Appelez-nous	-
2	74007973		Support, Orifice Holder	10	Appelez-nous	-
3	74007968		Support, Glass Top	10			$ 9.63
4	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
5	WP7513P351-60		Pipe Manifold/valve Assembly   (Replaces: 74007969)	10			$ 288.10
6	74007768		Panel, Module	10	Appelez-nous	-
7	WP8286828		Module, Spark   (Replaces: 74007767)	10			$ 297.59
8	74005933		Cover, Spark Module	10	Appelez-nous	-
9	W11087445		Regulator, Pressure   (Replaces: 74007747)	10		Immediately	$ 177.34
10	74007974		Tube, Burner (lf)	10	Appelez-nous	-
11	74007975		Tube, Burner (lr)	10	Appelez-nous	-
12	74007976		Tube, Burner (rf)	10			$ 31.22
13	74007977		Tube, Burner (rr)	10	Appelez-nous	-
14	74007978		Tube, Burner (ctr)	10	Appelez-nous	-
15	WP7527P031-60		Holder, Orifice (17)   (Replaces: 74007972)	10			$ 99.27
15	74007971		Holder, Orifice (12.5)	10			$ 33.66
15	74009553		Holder, Orifice (5k)   (Replaces: 74007763)	10			$ 75.27
15	74011125		Plate, Orifice Holder (sml)	10	Appelez-nous	-
15	74011124		Plate, Orifice Holder (lrg)	10	Appelez-nous	-
15	74007970		Holder, Orifice (9.2)	10			$ 66.65
16	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
17	550707		Bushing - Strain Relief	10	Appelez-nous	-
18	74007817		Cord, Power	10	Appelez-nous	-
19	WP74007753		Switch, Burner (lt)   (Replaces: 74007753)	10			$ 121.78
20	74007773		Switch, Burner (ctr)	10			$ 54.88
21	WP74007774		Switch, Burner (rt)   (Replaces: 74007774)	10			$ 122.99

    View Diagram in Separate Window       Print Part List
