01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts
SELECT A DIAGRAM
New Model Search:

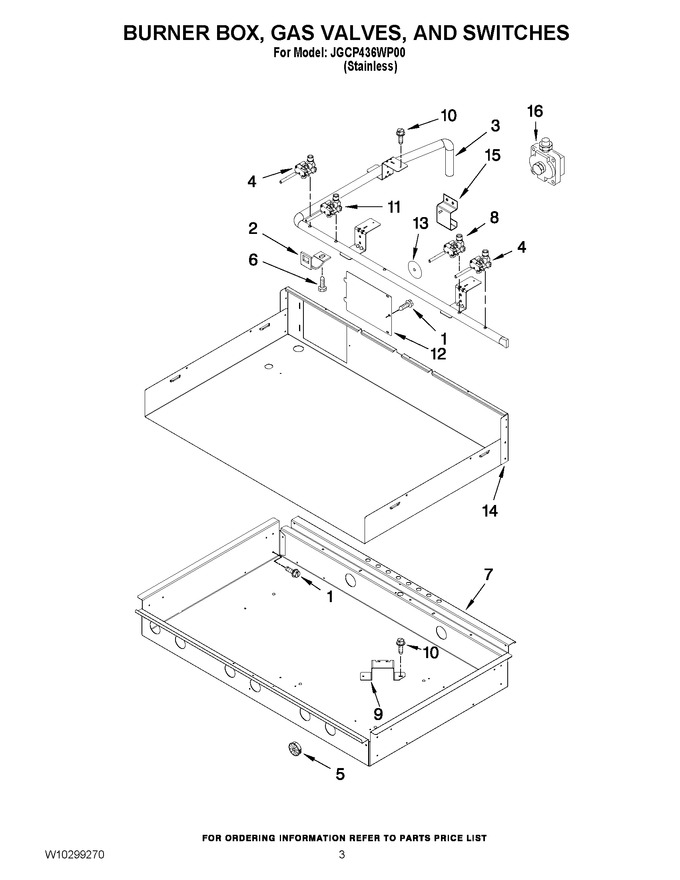

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 2 | W10189107 | Bracket, Valve |
|
- | |||||
| 3 | W10115896 | Manifold |
|
$ 104.48 | |||||
| 4 | W10250407 | Valve, Single (lr, Cf, & Rr) |
|
- | |||||
| 5 | W10189097 | Bushing, Burner Box |
|
$ 6.85 | |||||
| 6 | W10189140 | Screw, Valve Mtg |
|
$ 5.85 | |||||
| 7 | W10250425 | Burner Box Orifice Mounting |
|
- | |||||
| 8 | WPW10385583 | Valve, Single (cr) (Replaces: W10284547) |
|
Immediately | $ 284.66 | ||||
| 9 | W10280796 | Bracket, Burner |
|
- | |||||
| 10 | 74003640 | Screw |
|
$ 5.83 | |||||
| 11 | WPW10371235 | Valve, Gas (lf & Rf) (Replaces: W10250410) |
|
Immediately | $ 241.57 | ||||
| 12 | W10115843 | Cover, Ignition |
|
- | |||||
| 13 | W10189177 | Seal, Switch Cover |
|
$ 8.57 | |||||
| 14 | W10189156 | Cover, Burner Box |
|
- | |||||
| 15 | 8285790 | Bracket, Mounting Orifice |
|
$ 73.58 | |||||
| 16 | WP9759091 | Regulator,pressure (Replaces: 9759091) |
|
Immediately | $ 291.80 | ||||
| NI | W10115911 | Tubing, Gas (lf & Rf) - High |
|
$ 161.43 | |||||
| NI | W10115908 | Tubing, Gas (lf & Rf) - Low |
|
- | |||||
| NI | W10115910 | Tubing, Gas (lf, Cf, & Cr) |
|
$ 176.20 | |||||
| NI | W10280797 | Tubing, Gas (cr - Simmer) |
|
- |
