New Model Search:

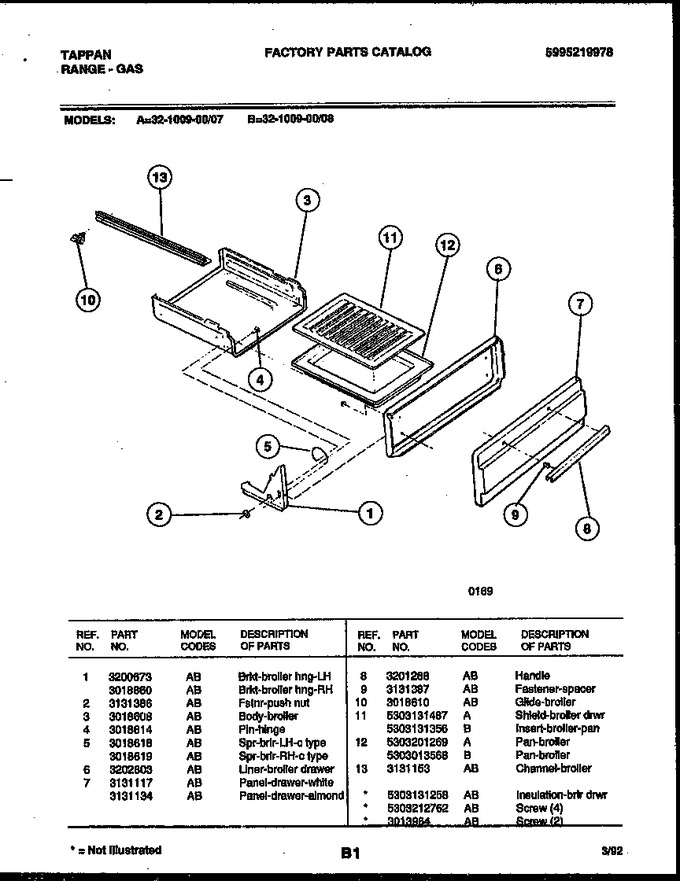

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018860 | Brkt-broiler Hng (rh) |
|
- | |||||
| 1 | 3200673 | Brkt-broiler Hng (lh) |
|
- | |||||
| 2 | 3131386 | Fstnr - Push Nut |
|
- | |||||
| 3 | 3018608 | Body, Broiler |
|
- | |||||
| 4 | 3018614 | Pin-hinge |
|
- | |||||
| 5 | 3018619 | Spr - Brlr-rh-c Type |
|
- | |||||
| 5 | 3018618 | Spr - Brlr-lh-c Type |
|
- | |||||
| 6 | 3202803 | Liner, Broiler Drawer |
|
- | |||||
| 7 | 3131117 | Panel-drawer, White |
|
- | |||||
| 8 | 3201268 | Handle |
|
- | |||||
| 9 | 3131387 | Fastener, Spacer |
|
- | |||||
| 10 | 3018610 | Glide-broiler |
|
$ 29.40 | |||||
| 11 | 5303131487 | Shield-broiler Drwr |
|
- | |||||
| 12 | 5303201269 | Pan Broiler |
|
- | |||||
| 13 | 3131153 | Channel-broiler |
|
- | |||||
| *67615 | 5303212762 | Screw (4) |
|
- | |||||
| *67615 | 3013964 | Screw (2) |
|
- | |||||
| *67615 | 5303131258 | Insulation-brlr Drwr |
|
- |
