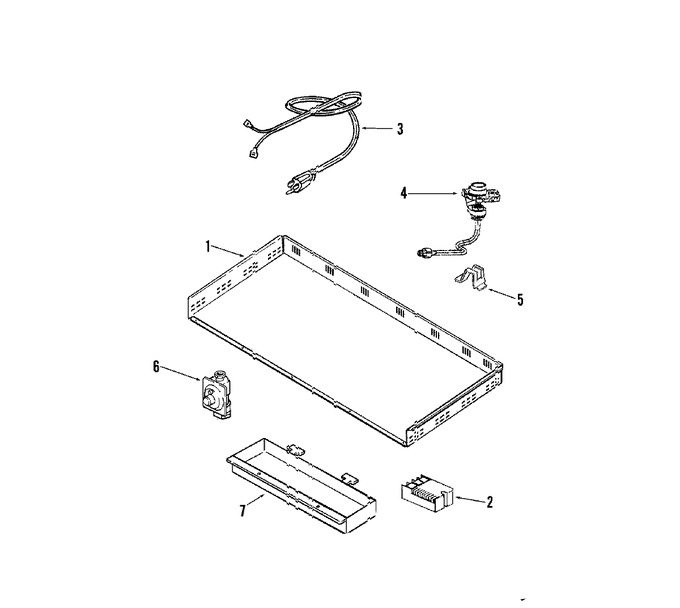

01 - Burner Box
02 - Control Panel/manifold Pipe
03 - Supplemental Information
04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009638 | Box, Burner | 10 |
|
- | ||||
| 2 | WP71002749 | Module, Spark (Replaces: 71002749) | 10 |
|
$ 300.87 | ||||
| 2 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 74009947 | Cord, Set | 10 |
|
- | ||||
| 4 | 74009817 | Holder, Orifice (cr-5k) | 10 |
|
- | ||||
| 4 | 74009816 | Holder, Orifice (cf-9.2k) | 10 |
|
$ 66.14 | ||||
| 4 | 74009815 | Holder, Orifice (lr-5k) | 10 |
|
- | ||||
| 4 | 74009814 | Holder, Orifice (lf-17k) | 10 |
|
$ 48.41 | ||||
| 4 | 74009813 | Holder, Orifice (rr-9.2k) | 10 |
|
$ 57.49 | ||||
| 4 | 74009812 | Holder, Orifice (rf) | 10 |
|
$ 51.72 | ||||
| 5 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 6 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 10 |
|
Immediately | $ 215.01 | |||
| 7 | 71003146 | Cover, Module | 10 |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 7 | Y04100254 | Relief, Strain | 10 |
|
- |
