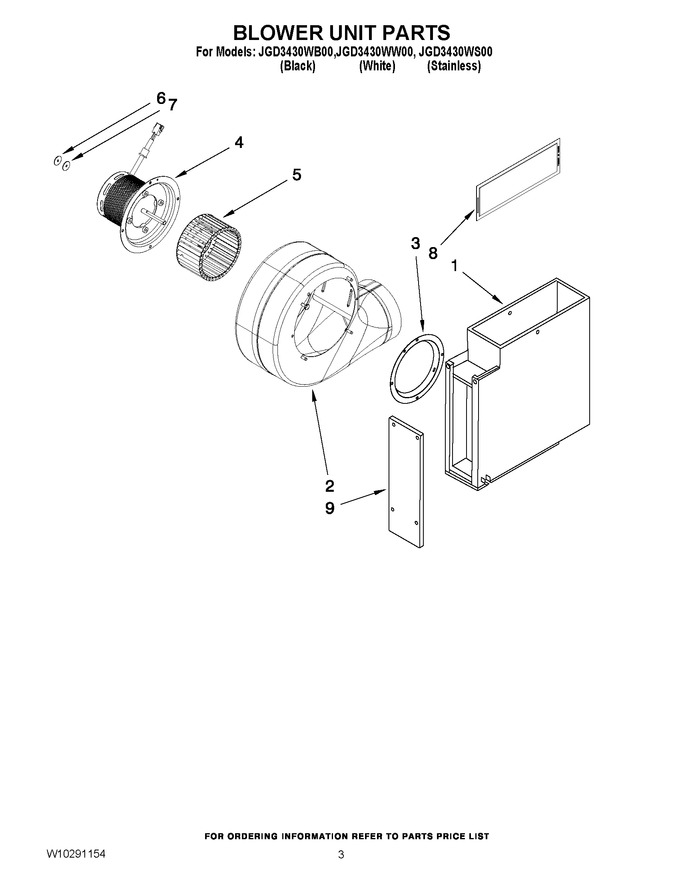

02 - Blower Unit Parts
03 - Burner Box Assembly
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Assembly,plenum (not Serviced) |
|
- | |||||
| 2 | 2822W001-80 | Blower, Scroll |
|
- | |||||
| 3 | 4026F008-51 | Ring, Inlet |
|
$ 7.43 | |||||
| 4 | WPW10247586 | Motor, Blower (Replaces: W10247586) |
|
$ 262.55 | |||||
| 5 | WPY707985 | Wheel, Blower (Replaces: 7114P005-60) |
|
Immediately | $ 145.55 | ||||
| 6 | WPY707702 | Nut (Replaces: 7103P162-60) |
|
Immediately | $ 6.26 | ||||
| 7 | 7109P086-60 | Washer |
|
- | |||||
| 8 | WPW10240990 | Filter, Grease (Replaces: W10240990) |
|
Immediately | $ 34.52 | ||||
| 9 | 8312P151-60 | Guard, Blower |
|
- |
