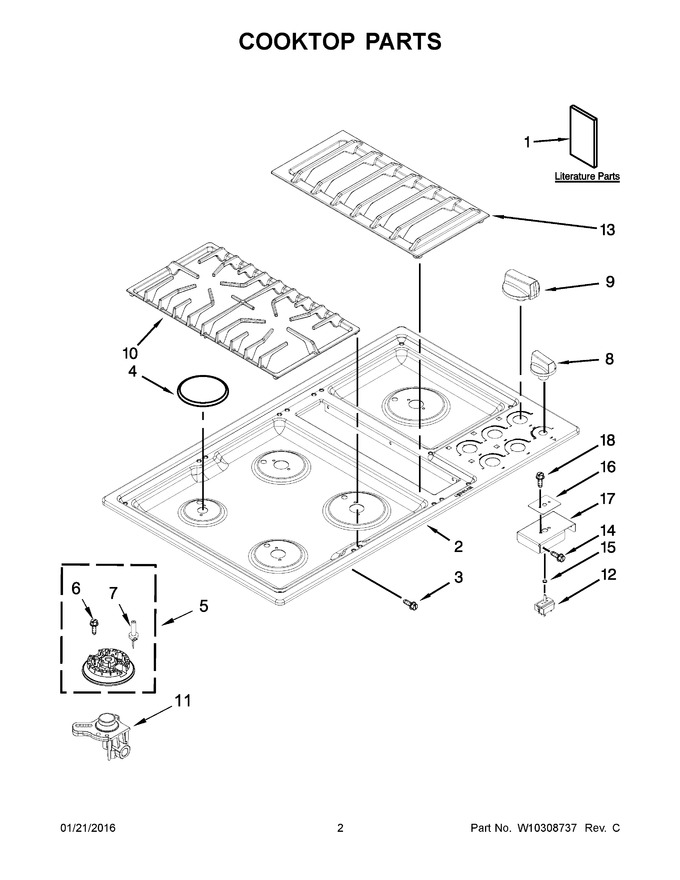

02 - Cooktop Parts


03 - Blower Unit Parts


04 - Burner Box Assembly Parts


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10197058		Installation Instructions		Appelez-nous	-
2	W10185525		Top, Main (black)		Appelez-nous	-
3	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 6.47
4	WP7504P299-60		Cap, Burner (black (left Front & Center Rear))   (Replaces: 7504P299-60)				$ 83.03
5	74007735		Assembly, Burner (left Front & Center Rear))   (Replaces: 7505P305-60)			Immediately	$ 102.76
6	WP8273062		Screw   (Replaces: 7101P606-60)			Immediately	$ 7.12
7	WP74009336		Ignitor, Cooktop   (Replaces: 7432P121-60)			Immediately	$ 24.30
8	W10209700		Knob, Fan (black)				$ 70.25
9	W10236134		Knob, Control (black)				$ 23.82
10	WPW10204545		Grate Black (left)   (Replaces: W10204545)				$ 185.27
11	WP7527P031-60		Holder, Orifice (17k) (left Front)   (Replaces: 7527P031-60)				$ 99.27
12	WP4456836		Switch, Blower   (Replaces: 4456836)			Immediately	$ 158.17
13	WPW10204547		Grille, Air (black)   (Replaces: W10204547)				$ 157.98
14	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 6.47
15	WP74007705		Grommet   (Replaces: 8008P065-60)			Immediately	$ 6.80
16	WP71002569		Gasket, Infinite Switch   (Replaces: 7201P077-60)			Immediately	$ 9.06
17	W10235926		Bracket, Switch Mount		Appelez-nous	-
18	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 6.26
10A	W10204546		Grate Black (center)				$ 86.29
10B	WPW10204548		Grate Black (right)   (Replaces: W10204548)				$ 170.03
10C	W10203091		Grate White (left)		Appelez-nous	-
10D	W10203092		Grate White (center)		Appelez-nous	-
10E	W10203094		Grate White (right)		Appelez-nous	-
11A	74009553		Holder, Orifice (5k) (center Front)   (Replaces: 7527P042-60)				$ 75.27
11B	WP7527P002-60		Holder, Orifice (9.2k) (left Rear)   (Replaces: 7527P002-60)				$ 72.90
11C	WP7527P003-60		Holder, Orifice (12.5k) (center Rear)   (Replaces: 7527P003-60)				$ 69.37
11D	WP7527P004-60		Holder, Orifice (right Rear)   (Replaces: 7527P004-60)				$ 72.90
13A	W10203093		Grille, Air (white)		Appelez-nous	-
1A	W10222824		Sheet, Tech (english)		Appelez-nous	-
1B	W10222823		Sheet, Tech (french)		Appelez-nous	-
1C	W10233478		Guide, Use & Care		Appelez-nous	-
1D	W10240007		Instructions, Lp Conversion		Appelez-nous	-
1E	8106P068-60		Card, Flow Tester				$ 6.65
1F	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1G	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2A	W10185527		Top, Main (white)		Appelez-nous	-
2B	W10185540		Top, Main (stainless)		Appelez-nous	-
4A	WP7504P298-60		Cap, Burner (black (left Rear))   (Replaces: 7504P298-60)				$ 56.92
4B	WP7504P300-60		Cap, Burner (black (right Rear & Center Front))   (Replaces: 7504P300-60)				$ 106.62
4C	7504P295-60		Cap, Burner (wetstone (left Front & Center Rear))				$ 82.77
4D	7504P294-60		Cap, Burner (wetstone (left Rear))				$ 62.87
4E	7504P296-60		Cap, Burner (wetstone (right Rear & Center Front))				$ 82.75
5A	74007734		Assembly, Burner (5k) (left Rear)   (Replaces: 7505P304-60)				$ 107.79
5B	74007736		Assembly, Burner (right Rear & Center Front)   (Replaces: 7505P306-60)			Immediately	$ 105.36
8A	W10209701		Knob, Fan (white)				$ 58.70
8B	W10207833		Knob, Fan (stainless)				$ 17.17
9A	W10236135		Knob, Control (white)		Appelez-nous	-
9B	W10236136		Knob, Control (stainless)				$ 51.48
NI	W10239523		Kit, Lp Orifice				$ 16.69
NI	W10249271		Rivet, Nylon		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10207825		Harness, Main				$ 177.55
NI	W10253222		Harness, Blower		Appelez-nous	-
NI	W10207826		Harness, Spark				$ 37.01
NI	3188867		Cord, Power   (Replaces: 7402P087-60)				$ 168.08
NI	8019P017-60		Relief, Strain		Appelez-nous	-
