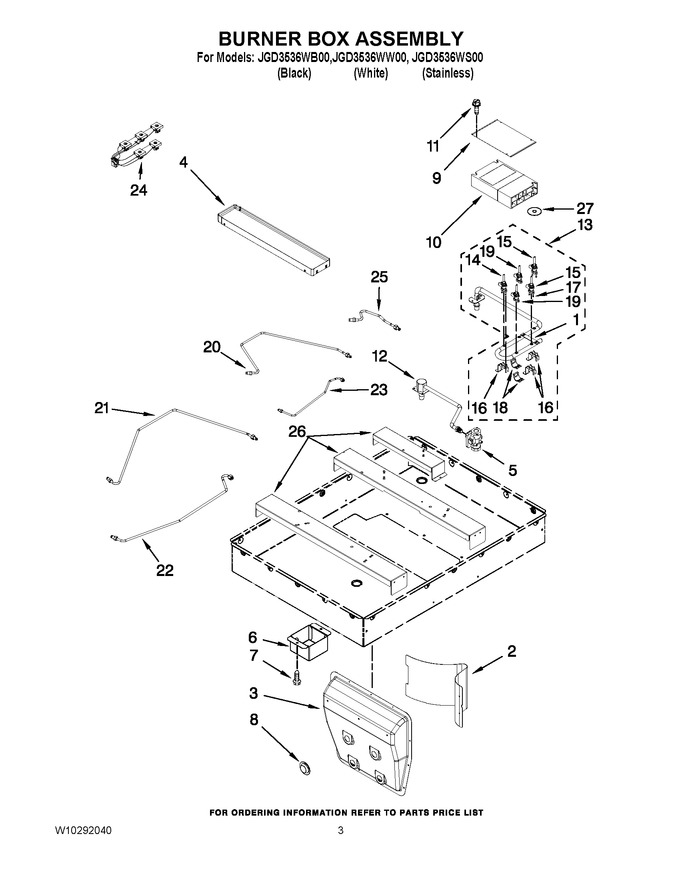

01 - Cooktop Parts


02 - Burner Box Assembly


03 - Blower Unit Parts


04 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10185534		Bracket, Spacing		Appelez-nous	-
2	W10184137		Rail, Plenum		Appelez-nous	-
3	W10184125		Bypass, Plenum				$ 181.44
4	W10235990		Tray, Spill				$ 73.51
5	W11087445		Regulator,pressure   (Replaces: W10132345)			Immediately	$ 177.34
6	W10258697		Cover, Blower Motor Harness			Immediately	$ 81.29
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
8	7718P023-60		Plug, Hole				$ 8.98
9	W10253448		Cover, Spark		Appelez-nous	-
10	WP8286828		Module, Spark   (Replaces: 7431P049-60)				$ 297.59
11	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
12	W10361756		Fitting,gas Supply			Immediately	$ 158.50
13	W10467732		Pipe,manifold Asy.   (Replaces: W10184143)				$ 271.27
14	W10441654		Valve, Top 5k   (Replaces: W10237981)				$ 221.94
15	W11699889		Valve, Top   (Replaces: W10237983)				$ 60.40
16	W10221532		Bracket, Valve		Appelez-nous	-
17	W11666001		Screw   (Replaces: W10246216)				$ 12.24
18	W10246217		Bracket, Valve		Appelez-nous	-
19	W10831822		Valve, Gas Top   (Replaces: W10259053)				$ 245.39
20	W10188368		Tubing,gas(cr)		Appelez-nous	-
21	W10188366		Tubing,gas(lr)		Appelez-nous	-
22	W10188365		Tubing,gas(lf)		Appelez-nous	-
23	W10188367		Tubing,gas(cf)		Appelez-nous	-
24	WPW10239017		Switch, Ignitor   (Replaces: W10239017)			Immediately	$ 203.60
25	W10188369		Tubing, Gas(r)		Appelez-nous	-
26	W10205612		Bracket, Orifice (left)		Appelez-nous	-
26	W10205613		Bracket, Orifice (center)		Appelez-nous	-
26	W10205615		Bracket, Orifice (right)		Appelez-nous	-
27	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61

    View Diagram in Separate Window       Print Part List
