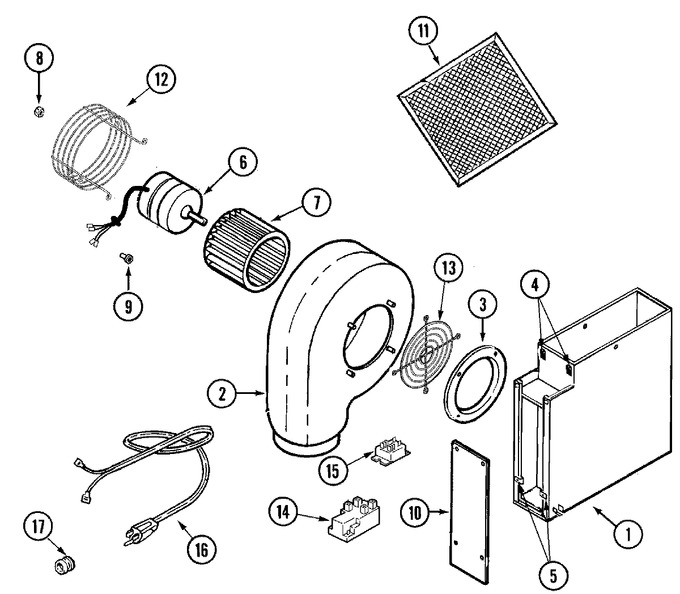

SELECT A DIAGRAM

01 - Blower Plenum


02 - Body


03 - Gas Controls


04 - Top Assembly


05 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74006138		Plenum Weld Assembly	10	Appelez-nous	-
1	74006610		Plenum Weld Assembly	11	Appelez-nous	-
2	712008		Scroll, Blower Assy.	10	Appelez-nous	-
2	Y704762		Retainer	10	Appelez-nous	-
2	Y704761		Ring, Restrictor	10	Appelez-nous	-
3	Y704758		Ring, Inlet	10	Appelez-nous	-
4	Y707831		Clip	10	Appelez-nous	-
5	74005812		Clip, Cover (j-type)	10	Appelez-nous	-
6	74005785		Blower Motor W/cage	10			$ 249.70
6	M0282005		Nut, Hex   (Replaces: 701719)	10			$ 7.07
6	Y707150		Screw	10	Appelez-nous	-
7	WPY707985		Wheel, Blower   (Replaces: Y707985)	10		Immediately	$ 145.55
8	WPY707702		Locknut   (Replaces: Y707702)	10		Immediately	$ 6.26
9	WP71001171		Screw   (Replaces: Y04100522)	10			$ 6.26
10	74006609		Cover, Plenum Access	11	Appelez-nous	-
10	71001759		Plate, Cover	10	Appelez-nous	-
10	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
10	74005868		Plate, Wire Cover	10	Appelez-nous	-
11	WP707929		Filter, Grease   (Replaces: 707929)	10		Immediately	$ 44.51
11	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
11	Y707688		Retainer, Filter	10	Appelez-nous	-
12	Y706193		Plug, Hole	10	Appelez-nous	-
12	W11233072		Screw (no.8ab)   (Replaces: 71001183)	10		Immediately	$ 12.62
12	74005787		Cage, Motor	10	Appelez-nous	-
13	74001521		Washer (1``)	10			$ 5.27
13	71001534		Guard, Blower	10			$ 57.89
14	8215557		Module, Spark (4+0)   (Replaces: 74004283)	10		Immediately	$ 124.99
15	12001452		Relay, Fan   (Replaces: 71001579)	10			$ 179.93
16	3188867		Cord, Power   (Replaces: 74005927)	10			$ 168.08
17	Y04100254		Relief, Strain	10	Appelez-nous	-
