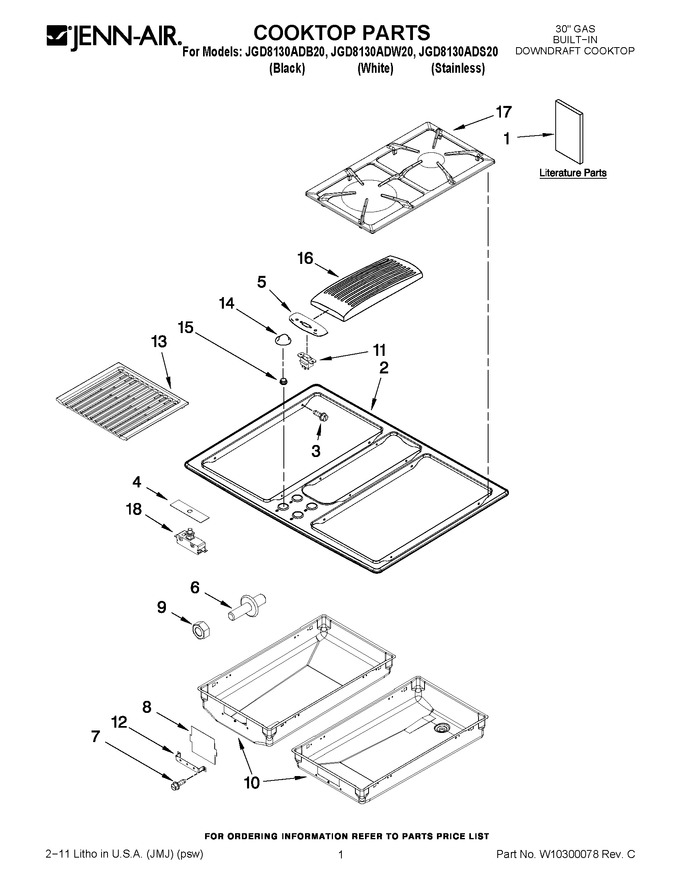

01 - Cooktop Parts
02 - Blower Unit Parts
03 - Burner Box Assembly
04 - Gas Controls
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P580-60 | Instructions, Installation (english) |
|
- | |||||
| 1 | 8101P189-60 | Instructions, Installation (french) |
|
- | |||||
| 1 | 8104P732-60 | Wiring Diagram |
|
- | |||||
| 1 | 8111P530-60 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | 8101P183-60 | Instructions, Ducting |
|
- | |||||
| 1 | 8101P405-60 | Instructions, Lp Conversion |
|
- | |||||
| 2 | 2002F152-09 | Top, Main (black) |
|
$ 238.07 | |||||
| 2 | 2002F209-50 | Top, Main (stainless) |
|
$ 277.29 | |||||
| 2 | 2002F152-81 | Top, Main (white) |
|
$ 222.94 | |||||
| 3 | W11233072 | Screw (Replaces: 7101P342-60) |
|
Immediately | $ 12.62 | ||||
| 4 | 7003P129-60 | Switch, Insul. |
|
- | |||||
| 5 | W10341820 | Trim, Control Fan (white) (Replaces: 7744P391-60) |
|
$ 274.08 | |||||
| 5 | 7744P390-60 | Trim, Control Fan (black) |
|
- | |||||
| 6 | 71001764 | Pin, Locator (Replaces: 7113P020-60) |
|
$ 8.68 | |||||
| 7 | WP489128 | Screw (Replaces: 7101P451-60) |
|
$ 9.79 | |||||
| 8 | 7003P130-60 | Block, Ceramic |
|
$ 29.24 | |||||
| 9 | Y052721 | Nut (Replaces: 7103P160-60) |
|
$ 21.38 | |||||
| 10 | 3401F099-19 | Pan, Grill (left) |
|
$ 188.12 | |||||
| 10 | 3401F066-19 | Pan, Grill (right) |
|
- | |||||
| 11 | W10341820 | Switch, Fan (white) (Replaces: 7403P429-60) |
|
$ 274.08 | |||||
| 11 | W10341820 | Switch, Fan (black) (Replaces: 7403P428-60) |
|
$ 274.08 | |||||
| 12 | 7112P150-60 | Clip |
|
- | |||||
| 13 | 7518P070-60 | Grate, Grill |
|
- | |||||
| 14 | WP7733P314-60 | Knob, Control (black) (Replaces: 7733P314-60) |
|
$ 6.47 | |||||
| 14 | W11233071 | Knob, Control (white) (Replaces: 7733P315-60) |
|
$ 62.60 | |||||
| 15 | 7103P164-60 | Palnut |
|
- | |||||
| 16 | 7772P046-60 | Grille, Air (black) |
|
$ 102.11 | |||||
| 16 | 7772P047-60 | Grille, Air (white) |
|
- | |||||
| 17 | 7518P475-60 | Grate, Burner (gray) |
|
- | |||||
| 17 | WP7518P483-60 | Grate, Burner (black) (Replaces: 7518P476-60) |
|
$ 186.73 | |||||
| 18 | WP7450P012-60 | Switch, Snap (Replaces: 7403P654-60) |
|
Immediately | $ 135.54 |
