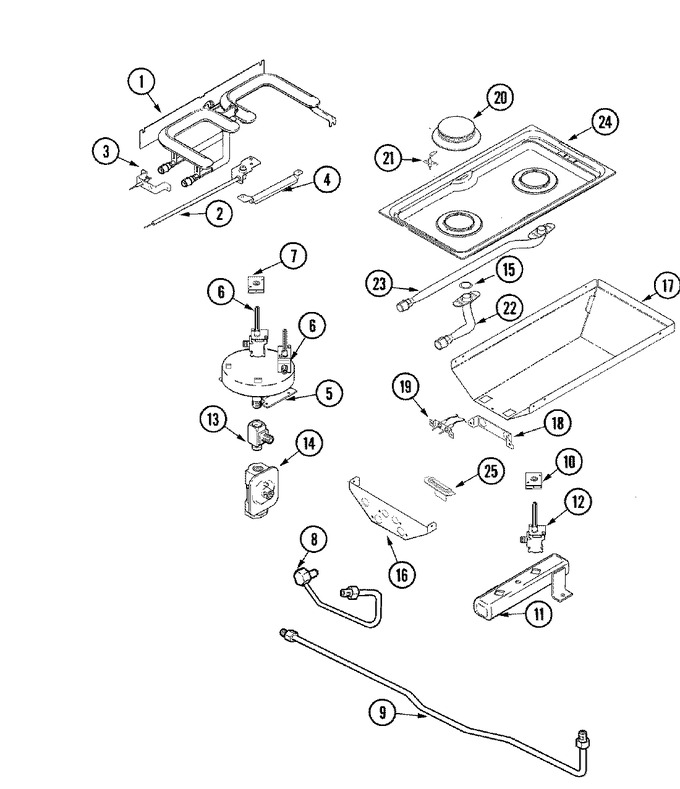

01 - Blower Plenum
02 - Body
03 - Gas Controls
04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74006070 | E-burner, Grill (Replaces: 74006070) | 10 |
|
$ 365.50 | ||||
| 2 | WP74006072 | Ignitor, E-burner (Replaces: 74006072) | 10 |
|
Immediately | $ 96.71 | |||
| 3 | WP74006073 | Ignitor, Ground Assy (Replaces: 74006073) | 10 |
|
$ 85.70 | ||||
| 4 | 74006071 | Shield, Ignitor Bracket | 10 |
|
- | ||||
| 5 | 74006155 | Manifold | 10 |
|
$ 148.06 | ||||
| 6 | WP74006156 | Valve, Top Burner (Replaces: 74006156) | 10 |
|
$ 248.17 | ||||
| 6 | WPY04100188 | Valve, Top Burner (lt) (Replaces: 74006173) | 10 |
|
$ 222.85 | ||||
| 7 | WP74006955 | Switch, Valve (single) (Replaces: 74006157) | 10 |
|
$ 125.41 | ||||
| 7 | WP74006956 | Switch, Valve (double) (Replaces: 74006956) | 15 |
|
$ 133.23 | ||||
| 7 | WP74006956 | Switch, Valve (double) (Replaces: 74006158) | 10 |
|
$ 133.23 | ||||
| 7 | WP74006955 | Switch, Valve (single) (Replaces: 74006955) | 15 |
|
$ 125.41 | ||||
| 8 | 74006159 | Tube, Burner (rf) | 10 |
|
- | ||||
| 8 | 74006165 | Tube, Burner (cr) | 10 |
|
- | ||||
| 8 | 74006164 | Tube, Burner (cf) | 10 |
|
- | ||||
| 8 | 74006162 | Tube, Burner (lr) | 10 |
|
- | ||||
| 8 | 74006161 | Tube, Burner (lf) | 10 |
|
- | ||||
| 8 | 74006160 | Tube, Burner (rr) | 10 |
|
- | ||||
| 9 | 74006163 | Tube, Manifold Supply | 10 |
|
- | ||||
| 10 | WP74006955 | Switch, Valve (single) (Replaces: 74006157) | 10 |
|
$ 125.41 | ||||
| 11 | 74006167 | Pipe, Manifold | 10 |
|
- | ||||
| 12 | 71003231 | Screw, Valve | 10 |
|
- | ||||
| 12 | WP7502P384-60 | Valve, Top Burner (Replaces: 74006168) | 10 |
|
$ 240.84 | ||||
| 13 | Y04100789 | Tee, Pipe | 10 |
|
- | ||||
| 14 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 10 |
|
Immediately | $ 215.01 | |||
| 15 | WP74005893 | Seal (brass) (Replaces: 74005893) | 10 |
|
$ 6.64 | ||||
| 16 | 74006935 | Cover, Cartridge | 14 |
|
- | ||||
| 16 | 74005887 | Cover, Cartridge | 10 |
|
- | ||||
| 17 | 74005888 | Housing, Cartridge | 10 |
|
- | ||||
| 18 | 74005889 | Bracket, Venturi Alignment | 10 |
|
- | ||||
| 18 | WP355214 | Screw (Replaces: Y700725) | 10 |
|
Immediately | $ 7.26 | |||
| 19 | WP74005890 | Ignitor/block, Assy (Replaces: 74006098) | 10 |
|
$ 73.14 | ||||
| 20 | WP3403M075-29 | Burner Assy (grey) (Replaces: 74005891) | 10 |
|
$ 209.06 | ||||
| 21 | 74004053 | Igniter, Top Burner | 10 |
|
Immediately | $ 24.25 | |||
| 22 | WP7538P008-60 | Venturi (front) (Replaces: 74005894) | 10 |
|
$ 182.76 | ||||
| 23 | WP59002061 | Screw (6abx3/8-sn) (Replaces: 74004288) | 10 |
|
$ 6.98 | ||||
| 23 | WP7538P009-60 | Venturi (rear) (Replaces: 74005895) | 10 |
|
$ 207.39 | ||||
| 24 | 74005896 | Top (wht) | 10 |
|
- | ||||
| 24 | WP59002061 | Screw (6abx3/8-sn) (Replaces: 74004288) | 10 |
|
$ 6.98 | ||||
| 25 | 74006934 | Guard, Corner | 14 |
|
- | ||||
| 26 | 74006166 | Harness, Spark | 10 |
|
- | ||||
| 26 | 74006049 | Kit, Lp Orifice (6 Burner) | 10 |
|
$ 63.50 | ||||
| 26 | 5170P922-60 | Harness, Spark Supply (Replaces: 74006954) | 15 |
|
$ 184.90 |
