01 - Blower Assembly-plenum
02 - Control Panel & Top Assembly
03 - Gas Controls & Burner Box
04 - Supplemental Information
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

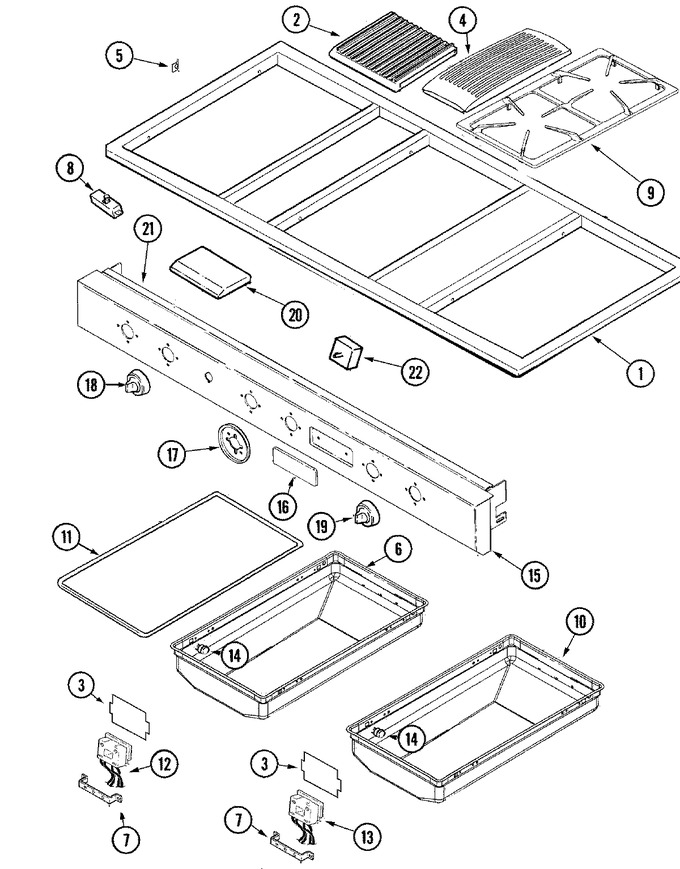

| 1 | 74007002 | Top (stl) | 10 |
|
- | ||||
| 2 | 71003267 | Grate, Grill | 10 |
|
$ 157.17 | ||||
| 3 | 74005866 | Insulator, Ceramic Block | 10 |
|
- | ||||
| 4 | 71003023 | Grill, Air (blk) | 10 |
|
- | ||||
| 5 | Y700503 | Clip, Retainer | 10 |
|
- | ||||
| 6 | 74006090 | Pan, Grill (lt) | 10 |
|
- | ||||
| 7 | 7112P150-60 | Clip, Terminal Block (Replaces: 74006093) | 10 |
|
- | ||||
| 8 | 74006095 | Insulator, Switch | 10 |
|
- | ||||
| 8 | WP7450P012-60 | Switch, Snap (Replaces: 74006094) | 10 |
|
Immediately | $ 135.54 | |||
| 9 | WP7518P483-60 | Grate, Burner (blk) (Replaces: 74009571) | 10 |
|
$ 186.73 | ||||
| 9 | WP7518P483-60 | Grate, Burner (blk) (Replaces: 74005898) | 10 |
|
$ 186.73 | ||||
| 9 | 814323 | Foot, Grate (rubber) (Replaces: 74007573) | 10 |
|
Immediately | $ 10.28 | |||
| 10 | 74006089 | Pan, Grill (rt) | 10 |
|
- | ||||
| 11 | Y704979 | Seal, Pan | 10 |
|
- | ||||
| 12 | 74006153 | Receptacle W/harness | 10 |
|
- | ||||
| 13 | 5170P926-60 | Receptacle W/harness (Replaces: 74006154) | 10 |
|
$ 126.63 | ||||
| 14 | Y052721 | Nut (Replaces: Y704553) | 10 |
|
$ 21.38 | ||||
| 14 | 71001764 | Pin, Locator | 10 |
|
$ 8.68 | ||||
| 15 | 74006999 | Panel, Upper Control | 10 |
|
- | ||||
| 15 | 74007000 | Panel, Lower Control----nla | 10 |
|
- | ||||
| 15 | 74007008 | Bracket, Control Panel | 10 |
|
- | ||||
| 16 | 74006889 | Nameplate (stl) | 10 |
|
$ 43.24 | ||||
| 17 | 71001056 | Bezel, Knob (ss) | 10 |
|
- | ||||
| 18 | 74007001 | Knob, Fan | 10 |
|
- | ||||
| 19 | WP71001057 | Knob, Valve (blk) (Replaces: 71001057) | 10 |
|
$ 22.21 | ||||
| 20 | 71001053 | Bracket, Filler | 10 |
|
- | ||||
| 20 | 71001052 | Escutcheon | 10 |
|
- | ||||
| 21 | 74007008 | Bracket, Control Panel | 10 |
|
- | ||||
| 22 | 74009662 | Switch, Rotary (Replaces: 74007010) | 10 |
|
$ 72.51 | ||||
| 23 | 5170P919-60 | Harness, Spark Supply (Replaces: 74007007) | 10 |
|
- | ||||
| 23 | 71001049 | Wire Harness, Gas (rt) | 10 |
|
- | ||||
| 23 | 71001051 | Wire Harness, Gas (lt) | 10 |
|
- | ||||
| 24 | 74006541 | Manual, Use & Care | 10 |
|
- |
