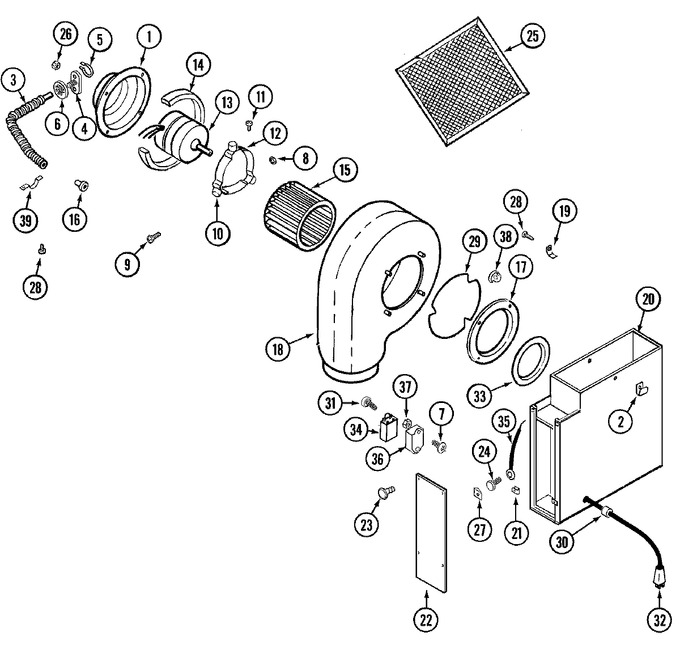

01 - Blower Assembly-plenum
02 - Control Panel & Top Assembly
03 - Gas Controls & Burner Box
04 - Supplemental Information
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y704968 | Cover, Motor | 10 |
|
- | ||||
| 2 | Y704423 | Clip, J | 10 |
|
- | ||||
| 3 | Y705155 | Conduit, Metal | 10 |
|
- | ||||
| 4 | Y705154 | Connector | 10 |
|
- | ||||
| 5 | 715780 | Clamp, Cable | 10 |
|
- | ||||
| 6 | 74005812 | Clip, Cover (j-type) | 10 |
|
- | ||||
| 7 | Y707150 | Screw | 10 |
|
- | ||||
| 8 | 707161 | Nut | 10 |
|
- | ||||
| 9 | Y707402 | Screw | 10 |
|
- | ||||
| 10 | WP71003558 | Isolator (Replaces: Y708926) | 10 |
|
$ 11.47 | ||||
| 11 | WP4159193 | Screw, Isolator (Replaces: 71003542) | 10 |
|
$ 4.29 | ||||
| 12 | Y707393 | Band, Motor | 10 |
|
- | ||||
| 13 | 74005785 | Blower Motor W/cage | 10 |
|
$ 249.70 | ||||
| 14 | Y715957 | Foam, Urethane | 10 |
|
- | ||||
| 15 | WPY707985 | Wheel, Blower (Replaces: Y707985) | 10 |
|
Immediately | $ 145.55 | |||
| 16 | 712311 | Bushing | 10 |
|
- | ||||
| 17 | Y704758 | Ring, Inlet | 10 |
|
- | ||||
| 18 | 71001534 | Guard, Blower | 10 |
|
$ 57.89 | ||||
| 18 | 712008 | Scroll, Blower Assy. | 10 |
|
- | ||||
| 19 | Y707688 | Retainer, Filter | 10 |
|
- | ||||
| 19 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 20 | 74006610 | Plenum Weld Assembly | 10 |
|
- | ||||
| 21 | 00705463 | Clip (Replaces: 705463) | 10 |
|
Immediately | $ 445.30 | |||
| 22 | 74006609 | Cover, Plenum Access | 10 |
|
- | ||||
| 23 | WP59002061 | Screw (Replaces: Y707172) | 10 |
|
$ 6.98 | ||||
| 24 | WP71001171 | Screw (Replaces: Y04100522) | 10 |
|
$ 6.26 | ||||
| 25 | WP707929 | Filter, Grease (Replaces: 707929) | 10 |
|
Immediately | $ 44.51 | |||
| 26 | WPY707702 | Locknut (Replaces: Y707702) | 10 |
|
Immediately | $ 6.26 | |||
| 27 | 701958 | Clip, Tinnerman | 10 |
|
- | ||||
| 28 | WP71001171 | Screw, Ground (Replaces: 71001171) | 10 |
|
$ 6.26 | ||||
| 29 | Y704762 | Retainer | 10 |
|
- | ||||
| 30 | Y04100254 | Relief, Strain | 10 |
|
- | ||||
| 31 | W11233072 | Screw (Replaces: Y708733) | 10 |
|
Immediately | $ 12.62 | |||
| 32 | 3188867 | Cord, Power (Replaces: 74005927) | 10 |
|
$ 168.08 | ||||
| 33 | Y704761 | Ring, Restrictor | 10 |
|
- | ||||
| 34 | 12001452 | Relay, Fan (Replaces: 71001579) | 10 |
|
$ 179.93 | ||||
| 34 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 34 | 74005786 | Nut, Acorn | 10 |
|
- | ||||
| 35 | 74006139 | Wire, Ground | 10 |
|
- | ||||
| 36 | 74004282 | Module, Spark (2+0) | 10 |
|
$ 195.66 | ||||
| 36 | 8215557 | Module, Spark (4+0) (Replaces: 74004283) | 10 |
|
Immediately | $ 124.99 | |||
| 36 | 71001536 | Bracket, Plenum (frt) | 10 |
|
- | ||||
| 36 | 74006140 | Wire, Ground (module/ground) | 10 |
|
- | ||||
| 38 | 74001521 | Washer (1``) | 10 |
|
$ 5.27 | ||||
| 38 | 702889 | Locknut Cap, W/nylon Insert | 10 |
|
- | ||||
| 39 | 74005812 | Clip, Cover (j-type) | 10 |
|
- |
