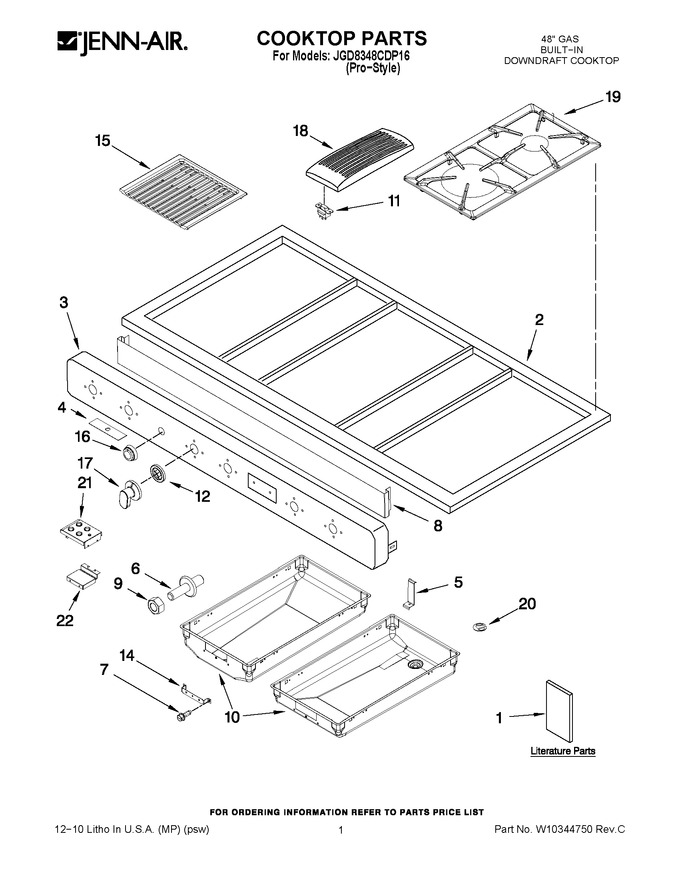

01 - Cooktop Parts
02 - Blower Unit Parts
03 - Burner Box Assembly
04 - Gas Controls
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P658-60 | Installation Instructions |
|
- | |||||
| 1 | 8104P807-60 | Wiring Diagram |
|
- | |||||
| 1 | 8111P535-60 | Use & Care Guide |
|
- | |||||
| 1 | 8101P183-60 | Instructions, Ducting |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | 7746P096-60 | Top, Main |
|
$ 774.50 | |||||
| 3 | 7720P506-60 | Control Panel |
|
$ 245.06 | |||||
| 4 | 7003P129-60 | Switch, Insul. |
|
- | |||||
| 5 | 3801F689-51 | Bracket, Control Panel |
|
$ 10.14 | |||||
| 6 | 71001764 | Pin, Locator (Replaces: 7113P020-60) |
|
$ 8.68 | |||||
| 7 | WP489128 | Screw (Replaces: 7101P451-60) |
|
$ 9.79 | |||||
| 8 | 3608F132-50 | Trim, Control Panel |
|
$ 60.77 | |||||
| 9 | Y052721 | Nut (Replaces: 7103P160-60) |
|
$ 21.38 | |||||
| 10 | 3401F099-19 | Pan, Grill (left) |
|
$ 188.12 | |||||
| 10 | 3401F066-19 | Pan, Grill (right) |
|
- | |||||
| 11 | 74009662 | Switch, Rotary (Replaces: 7403P882-60) |
|
$ 72.51 | |||||
| 12 | 7740P145-60 | Bezel, Knob |
|
$ 71.60 | |||||
| 14 | 7112P150-60 | Clip |
|
- | |||||
| 15 | 7518P070-60 | Grate, Grill |
|
- | |||||
| 16 | 7737P353-60 | Knob, Fan |
|
$ 63.71 | |||||
| 17 | WPW10175692 | Knob, Control (Replaces: W10175692) |
|
Immediately | $ 48.74 | ||||
| 18 | 7772P024-60 | Grille, Air |
|
$ 110.79 | |||||
| 19 | WP7518P483-60 | Grate, Burner (Replaces: 7518P483-60) |
|
$ 186.73 | |||||
| 20 | 7212P053-60 | Seal, Pan |
|
- | |||||
| 21 | 7770P005-60 | Escutcheon |
|
$ 100.50 | |||||
| 22 | 3801F426-80 | Bracket, Filler |
|
$ 39.47 |
