SELECT A DIAGRAM

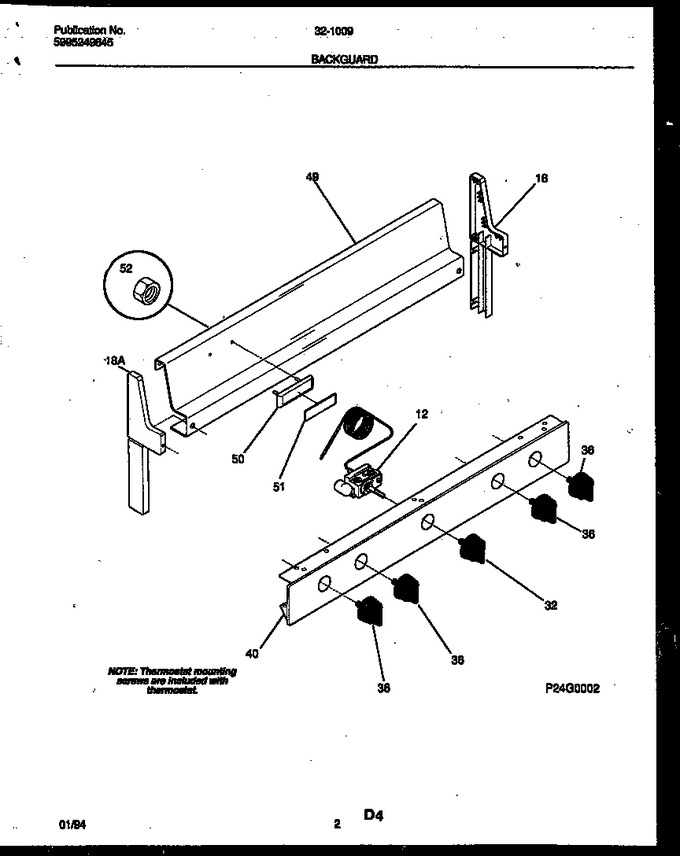

02 - Backguard
03 - Burner Parts
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 5303935014 | Thermostat,oven ,w/screws |
|
- | |||||
| 18 | 3202802 | End Cap,black ,rh |
|
- | |||||
| 32 | 5303297131 | Knob-thermostat |
|
- | |||||
| 36 | 3204869 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 3204871 | Panel-manifold |
|
- | |||||
| 49 | 3051199 | Panel-backguard, White |
|
- | |||||
| 50 | 316052100 | Bezel-nameplate |
|
- | |||||
| 51 | 316006606 | Nameplate |
|
- | |||||
| 52 | 5303131215 | Nut, Twist |
|
- | |||||
| 18A | 3202801 | End Cap,black ,lh |
|
- |
