SELECT A DIAGRAM
01 - Blower Assembly (plenum)
02 - Gas Controls
03 - Supplemental Information
04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:

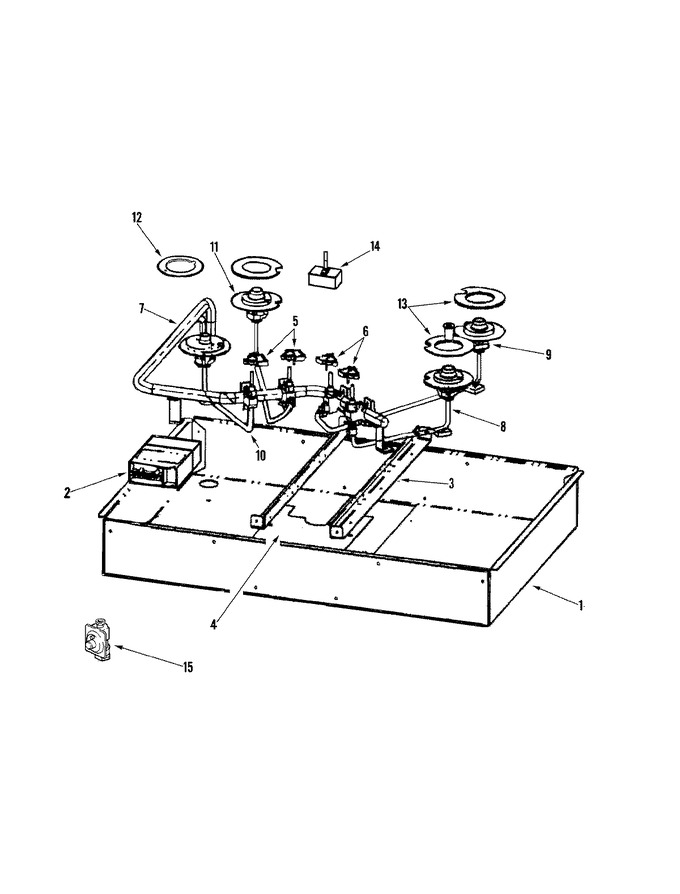

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010763 | Bottom, Burner Box | 10 |
|
- | ||||
| 2 | WP74010766 | Module, Spark (Replaces: 74010766) | 10 |
|
Immediately | $ 313.25 | |||
| 3 | W10188061 | Bracket, Stiffener | 14 |
|
- | ||||
| 3 | W10188061 | Bracket, Stiffener | 12 |
|
- | ||||
| 3 | W10188061 | Bracket, Stiffener | 13 |
|
- | ||||
| 3 | 74010767 | Bracket, Stiffener | 10 |
|
- | ||||
| 4 | 74010770 | Insulator, Baffle | 10 |
|
- | ||||
| 5 | WP74010857 | Switch, Spark (lt) (Replaces: 74010857) | 10 |
|
$ 142.61 | ||||
| 6 | WP74010858 | Switch, Spark (rt) (Replaces: 74010858) | 10 |
|
Immediately | $ 137.14 | |||
| 7 | 74010771 | Manifold Pipe/valve Asy | 10 |
|
- | ||||
| 7 | WP74001380 | Seal, Manifold Pipe (Replaces: 74001380) | 10 |
|
$ 58.91 | ||||
| 8 | 74010772 | Orifice Holder Asy (rf) | 10 |
|
$ 147.86 | ||||
| 9 | 74010773 | Orifice Holder Asy (rr) | 10 |
|
$ 153.82 | ||||
| 10 | 74010774 | Orifice Holder Asy (lf) | 10 |
|
$ 142.61 | ||||
| 11 | W11416836 | Orifice Holder Asy (lr) (Replaces: 74010775) | 10 |
|
$ 95.36 | ||||
| 12 | WP74010652 | Gasket, Fiberglass (Replaces: 74010652) | 10 |
|
$ 73.71 | ||||
| 13 | WP74010776 | Gasket, Fiberglass (Replaces: 74010776) | 10 |
|
$ 63.68 | ||||
| 14 | WP74010783 | Switch, Rotary (Replaces: 74010783) | 10 |
|
$ 129.23 | ||||
| 15 | W11087445 | Regulator, Pressure (Replaces: 74007747) | 10 |
|
Immediately | $ 177.34 |
