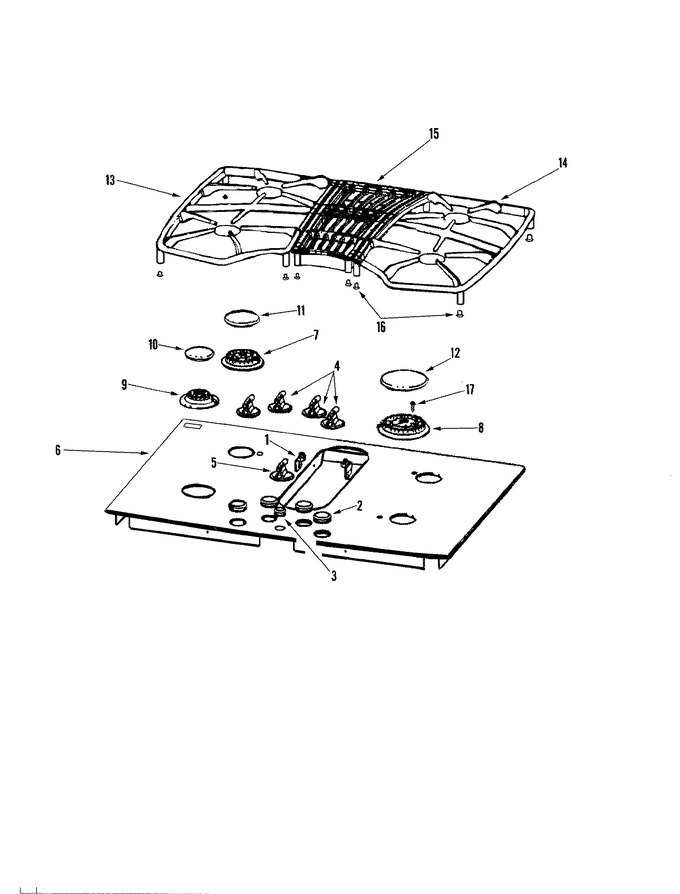

01 - Blower Assembly (plenum)
02 - Gas Controls
03 - Supplemental Information
04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010860 | Locator, Grate | 10 |
|
$ 9.06 | ||||
| 2 | WP8008P071-60 | Grommet (blk) (Replaces: 74009421) | 10 |
|
$ 8.02 | ||||
| 3 | WPW10293874 | Grommet (Replaces: 74007885) | 10 |
|
Immediately | $ 7.25 | |||
| 4 | WP7733P410-60 | Knob, Burner (chr) (Replaces: 74007733) | 10 |
|
Immediately | $ 22.35 | |||
| 5 | WP7737P245-60 | Knob (chr) (Replaces: 74007918) | 10 |
|
Immediately | $ 14.09 | |||
| 6 | W10204669 | Glass Top Asy (blk) (Replaces: 74010779) | 10 |
|
$ 952.23 | ||||
| 6 | 74010859 | Trim (front-stl) | 10 |
|
- | ||||
| 6 | 74008241 | Trim (rear-stl) | 10 |
|
- | ||||
| 7 | 74007735 | Burner Assembly (lrg) | 10 |
|
Immediately | $ 102.76 | |||
| 7 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 8 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 8 | 74007736 | Burner Assembly (x-lrg) | 10 |
|
Immediately | $ 105.36 | |||
| 9 | 74010778 | Burner Assembly (sml) | 10 |
|
- | ||||
| 9 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 10 | WP3191898 | Cap, Burner (smr-blk) (Replaces: 74007416) | 10 |
|
$ 60.86 | ||||
| 11 | WP74007925 | Cap, Burner (med-blk) (Replaces: 74007925) | 10 |
|
$ 86.81 | ||||
| 12 | 74007414 | Cap, Burner (lrg-blk) | 10 |
|
- | ||||
| 13 | 74010861 | Grate (lt-blk) | 10 |
|
- | ||||
| 14 | 74010862 | Grate (rt-blk) | 10 |
|
- | ||||
| 15 | 74010863 | Grate (ctr-blk) | 10 |
|
- | ||||
| 16 | 814323 | Foot, Grate (rubber) (Replaces: 74007573) | 10 |
|
Immediately | $ 10.28 | |||
| 17 | WP8273062 | Screw, Ignitor (Replaces: 74009337) | 10 |
|
Immediately | $ 7.12 |
