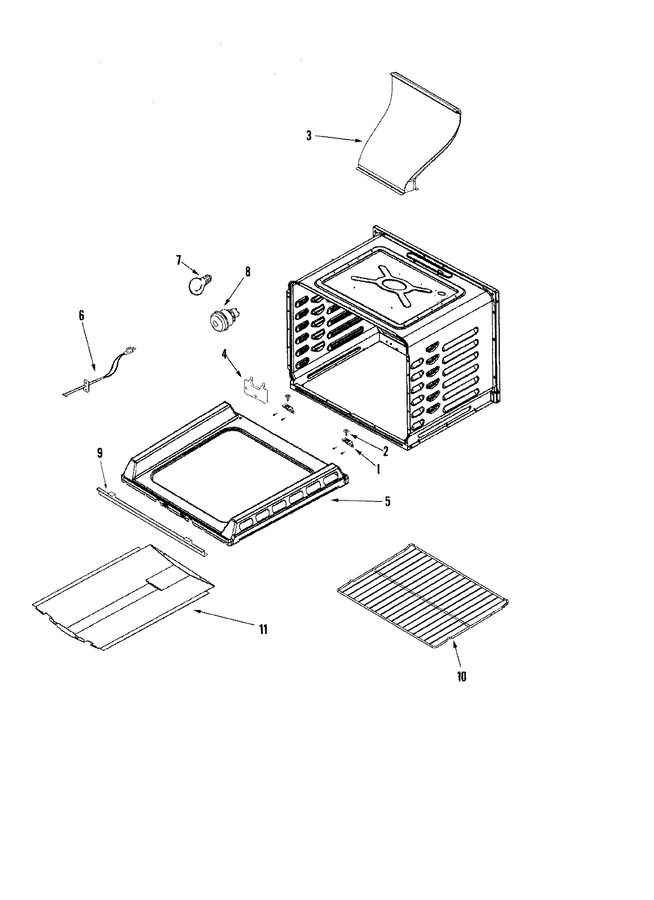

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw, 8 X 1/2 (Replaces: 74002979) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 74008694 | Support, Oven Bottom (rear) | 10 |
|
- | ||||
| 2 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 3 | 74008817 | Vent, Oven | 10 |
|
- | ||||
| 4 | 4005F421-45 | Cover,igniter | 10 |
|
- | ||||
| 5 | WPW10211368 | Bottom, Oven (Replaces: 74008741) | 10 |
|
Immediately | $ 287.07 | |||
| 6 | 12001655 | Sensor, Oven (short) (Replaces: 74004944) | 10 |
|
Immediately | $ 41.01 | |||
| 7 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 10 |
|
Immediately | $ 16.80 | |||
| 8 | WP74011278 | Light, Oven Asy. (Replaces: 74011278) | 10 |
|
$ 101.56 | ||||
| 9 | 74008695 | Support, Oven Bottom (front) | 10 |
|
- | ||||
| 10 | WP74008763 | Rack, Oven (Replaces: 74008763) | 10 |
|
$ 192.14 | ||||
| 11 | 74008846 | Baffle, Bake Burner | 10 |
|
- |
