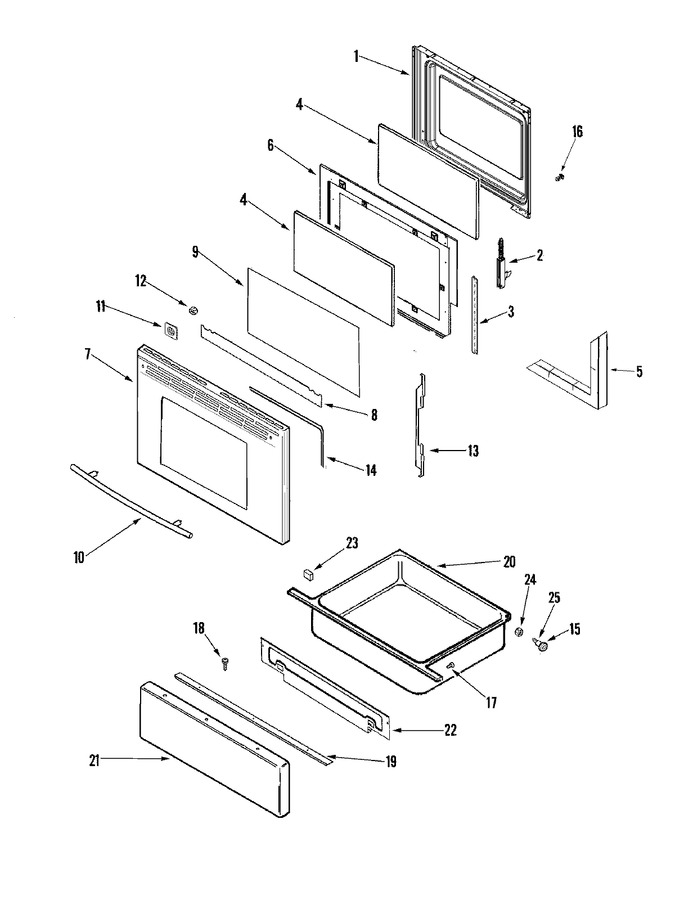

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74008926		Lining, Door	10	Appelez-nous	-
2	74010546		Hinge, Door	10		Immediately	$ 77.34
3	74011458		Bracket, Inner Glass	10	Appelez-nous	-
4	74003645		Glass, Inner	10		Immediately	$ 162.53
5	74003647		Insulation, Oven Door	10	Appelez-nous	-
6	3601F380-51		Baffle/insulation Retainer	10			$ 25.83
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	7760P218-60		Panel, Door (stl)	10			$ 239.97
8	7002P482-60		Insulation, Foil (door)	10	Appelez-nous	-
9	7902P805-60		Glass, Outer	10	Appelez-nous	-
10	74008920		Handle, Door	10	Appelez-nous	-
11	W11190816		Spacer, Handle   (Replaces: 74008914)	10			$ 14.94
12	WP3400029		Nut, Washered Lock   (Replaces: Y311426)	10		Immediately	$ 6.98
13	3801F918-51		Bracket, Glass	10	Appelez-nous	-
14	74008916		Gasket, Window	10			$ 127.97
15	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
16	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
17	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
18	W11233072		Screw, (no.8x1/2``pph)   (Replaces: 74009268)	10		Immediately	$ 12.62
19	7701P547-60		Handle, Drawer	15			$ 89.46
19	74008909		Handle, Drawer	10			$ 32.96
20	WP3405F037-80		Drawer, Service   (Replaces: 74008877)	10			$ 304.98
21	74009518		Panel, Drawer (stl-gas)	10	Appelez-nous	-
22	74009105		Shield, Heat (drawer)	10	Appelez-nous	-
23	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
24	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
25	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
