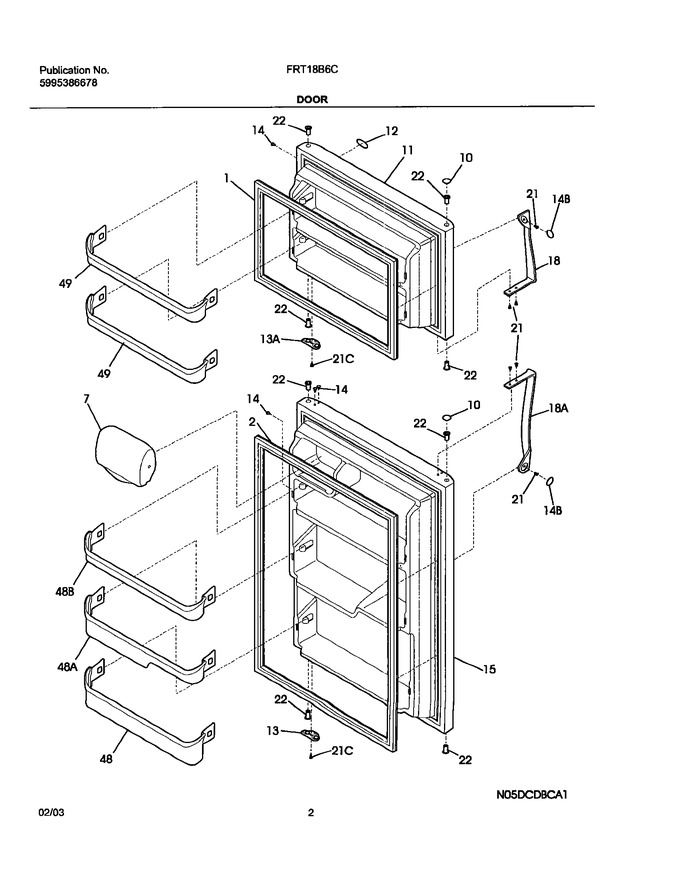

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240337701		Door-dairy,w/o Graphics ,white			Immediately	$ 34.02
10	240381301		Plug-button,white ,hinge Brg Hole ,(2)			Immediately	$ 18.95
11	240476201		Panel-frzr Door,white ,complete Assy		Appelez-nous	-
12	241808601		Label-nameplate,white   (Replaces: 240415201)				$ 12.69
13	240312421		Door Stop,white ,ref   (Replaces: 240312403)				$ 15.17
14	240494001		Plug-button,white			Immediately	$ 18.20
15	240476301		Panel-refr Door,white ,complete Assy		Appelez-nous	-
18	240339201		Handle-door,white Refr-lh/frzr-rh				$ 81.85
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500   (Replaces: 240383401)			Immediately	$ 19.23
22	5304507146		Bearing-hinge,natural Color ,(8)   (Replaces: 240527101)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240495804		Bin-door,pseudo ,frzr			Immediately	$ 43.29
13A	240312414		Door Stop,white ,frzr   (Replaces: 240312404)				$ 19.13
14B	240383601		Plug-button,white ,door Handle				$ 8.77
18A	5304492832		Handle-door,white Refr-rh/frzr-lh   (Replaces: 240339206)				$ 105.61
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
48A	240337901		Bin-door,refr			Immediately	$ 52.13
48B	240338001		Bin-door,pseudo ,gallon ,refr			Immediately	$ 34.96
F1	241872503		Gasket,frzr Door Seal ,white ,magnetic   (Replaces: 240514605)			Immediately	$ 137.66
F2	242193213		Gasket,seal ,white ,refr Door ,magnetic   (Replaces: 240514608)			Immediately	$ 190.22
