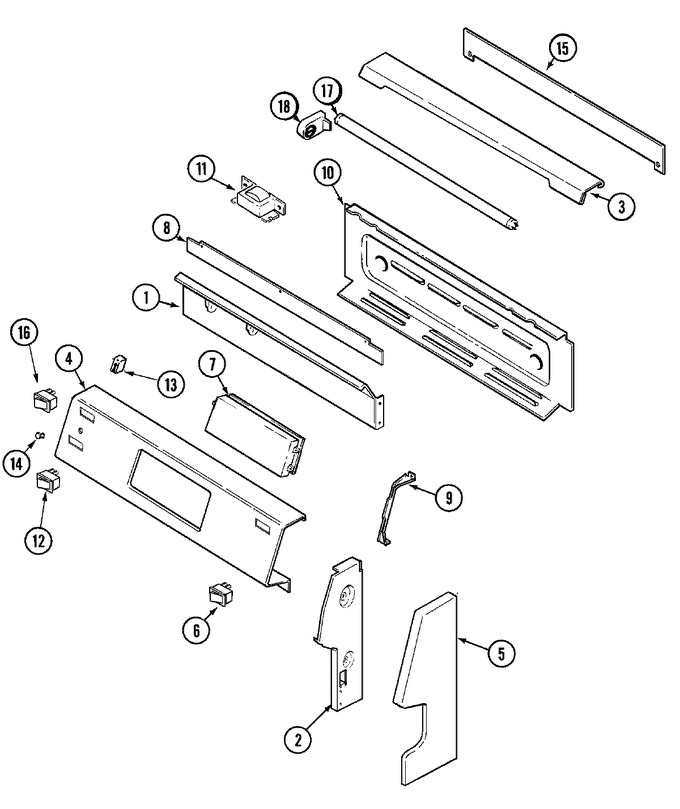

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003488 | Shield, Vent Deflector | 10 |
|
- | ||||
| 1 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 2 | 74003490 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 2 | 74003489 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 3 | 71003589 | Cover, Light (bsq) | 10 |
|
- | ||||
| 4 | 74006734 | Panel, Control (bsq) | 10 |
|
- | ||||
| 5 | WP74009541 | Screw (1/2``-bsq) (Replaces: 74004976) | 10 |
|
$ 6.26 | ||||
| 5 | 74004982 | Screw (6abx1/2 3/16) | 10 |
|
- | ||||
| 5 | 71003586 | End Cap, Panel (rt-bsq) | 10 |
|
- | ||||
| 5 | 71003587 | End Cap, Panel (lt-bsq) | 10 |
|
- | ||||
| 6 | 74008765 | Switch, Rocker (bsq) (Replaces: 74004983) | 10 |
|
$ 79.50 | ||||
| 7 | WP59002061 | Screw (6abx3/8-sn) (Replaces: 74004288) | 10 |
|
$ 6.98 | ||||
| 7 | 74006226 | Clock W/overlay (bsq) | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 8036P003-60 | Shield, Sight | 10 |
|
- | ||||
| 9 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 9 | 74003550 | Bracket, Clock | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74006536 | Cover, Wire (2 5/8`` X 2) | 10 |
|
- | ||||
| 10 | 74004963 | Housing, Control Panel | 10 |
|
- | ||||
| 11 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 74003033 | Ballast | 10 |
|
- | ||||
| 12 | 74006702 | Switch, Rocker (bsq) | 10 |
|
- | ||||
| 13 | 71003194 | Light, Indicator (125v) | 10 |
|
- | ||||
| 14 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 15 | 74003558 | Shield, Light | 10 |
|
- | ||||
| 16 | 71003590 | Switch, Fluorescent Light(bsq) | 10 |
|
- | ||||
| 17 | WP95292 | Bulb, Fluorescent Li (Replaces: 7407P037-60) | 10 |
|
Immediately | $ 121.45 | |||
| 18 | 7408P030-60 | Receptacle, Snap-in (lt) | 10 |
|
- | ||||
| 19 | 74005921 | Manual, Use & Care | 10 |
|
- | ||||
| 19 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- | ||||
| 20 | 16010161 | Manual, Srvc Elec/gas Range | 10 |
|
- | ||||
| 21 | 74006710 | Harness, Pedestal | 10 |
|
- | ||||
| 21 | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| 21 | 74006516 | Harness, Valve Switch/bbb | 10 |
|
- | ||||
| 21 | 74006693 | Harness, Wire (spark,warm Drw) | 10 |
|
- | ||||
| 21 | 74006709 | Harness, Backguard | 10 |
|
- |
