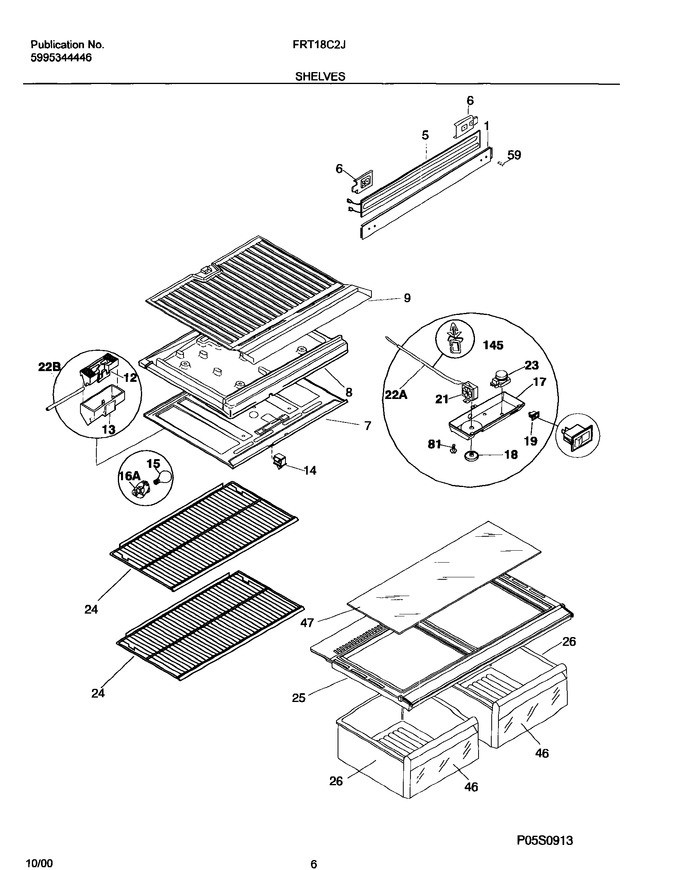

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218874301		Mullion,white		Appelez-nous	-
6	218845602		Tapping Plate, Mullion Mtg, (2)				$ 14.86
7	218814800		Panel-top,refr Cavity		Appelez-nous	-
8	218872903		Divider,styrofoam ,w/foil Tape				$ 150.30
9	218814700		Panel-bottom,frzr Cavity				$ 288.94
12	5303001449		Seal-air Deflector,foam Plastic ,(2)				$ 2.12
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
17	5308016567		Nut-anchor		Appelez-nous	-
17	5304414816		Control Box		Appelez-nous	-
18	5303311079		Knob-temp Control		Appelez-nous	-
21	5304404821		Control-temperature   (Replaces: 5303321453)			Immediately	$ 164.57
21	5303001260		Screw				$ 6.73
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
24	5303307451		Shelf, Sliding, Wire, Refr Section		Appelez-nous	-
25	5303207340		Cover-crisper Pan, W/beams, Less Insert				$ 265.80
26	3206438		Pan-crisper			Immediately	$ 227.80
46	5303304709		Front-crisper Pan				$ 100.28
47	5303281398		Insert-pan Cover, Glass				$ 114.29
59	240442708		Screw, Pan Head, 10-32 X 0.625, Hinge/mullion, Thread Forming   (Replaces: 218188000)				$ 8.34
81	5303001380		Screw		Appelez-nous	-
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
22A	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
22B	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
F14	5309918806		Switch-light/lamp			Immediately	$ 21.97
F15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
F16A	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
F19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
F23	215846602		Timer-defrost,60 Hz ,120 V ,10 Hour/21 Min   (Replaces: 215846605)			Immediately	$ 28.20
F5	218781003		ú Heater-mullion				$ 103.79
NI	218878500		Wiring Harness,control/divider				$ 105.99
